Description
Product Overview

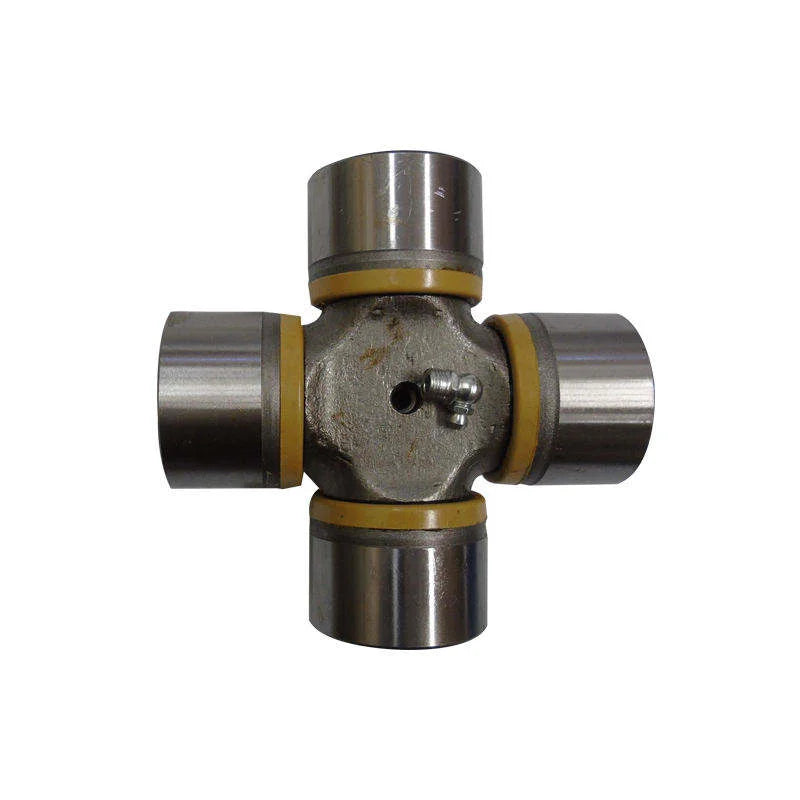

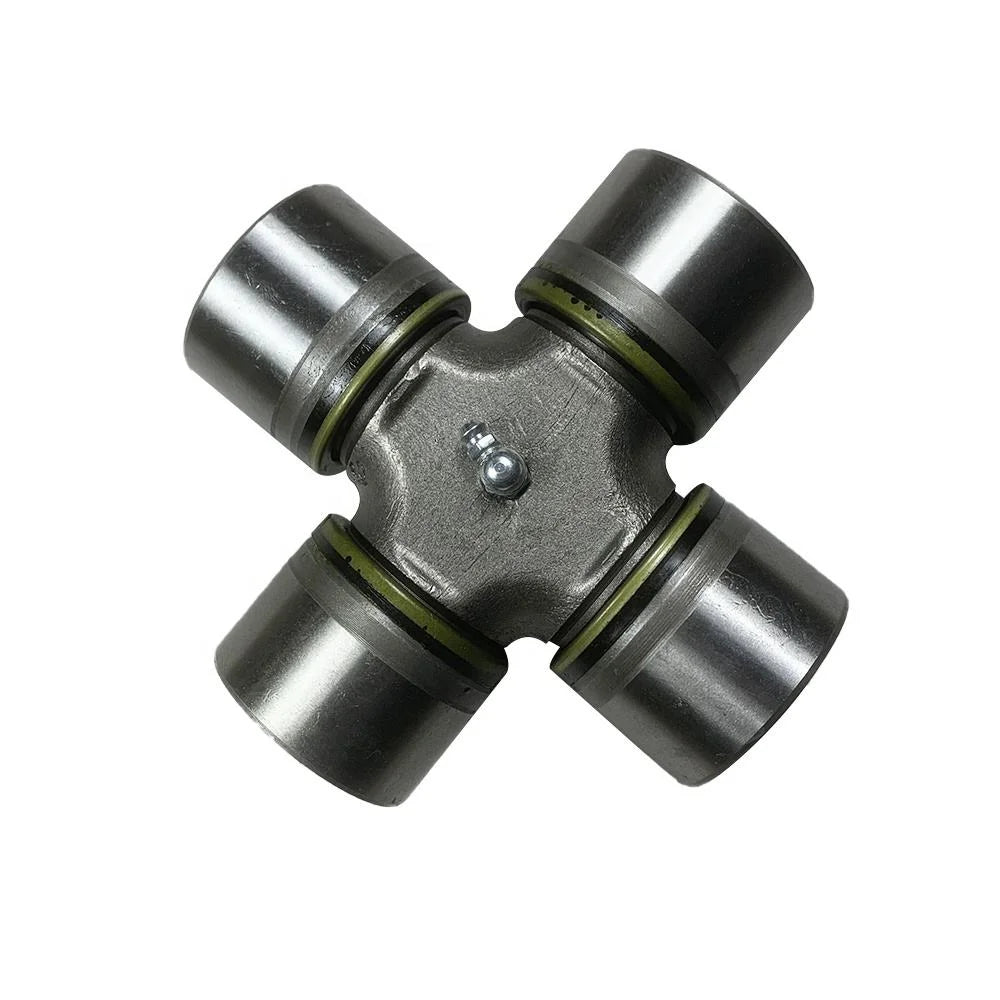

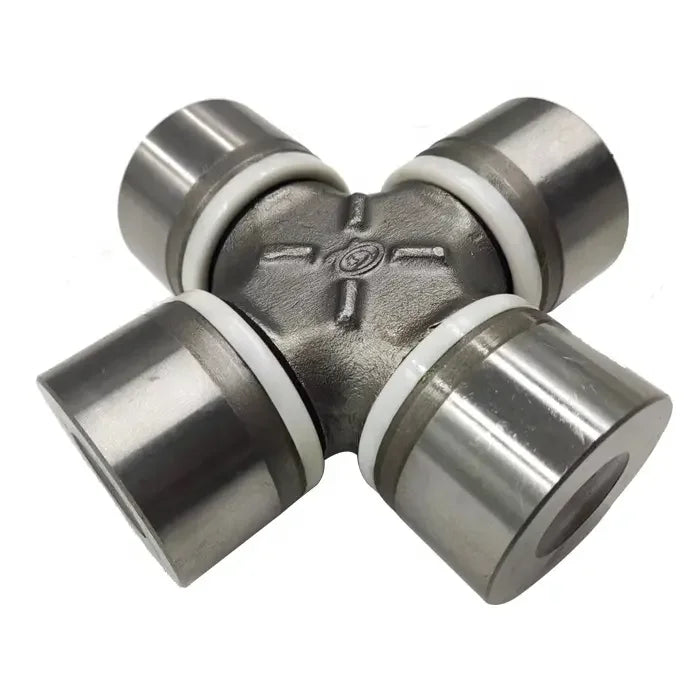

Part Name: Universal Joint (U-Joint) Assembly
Part Number: WG9319313250
Vehicle Compatibility: Sinotruk HOWO A7, HOWO T7H, HOWO TX and standard HOWO 6×4 & 8×4 Trucks (2010–2024) equipped with propeller shaft/driveshaft systems that specify universal joint assembly WG9319313250 with 57×144 dimensions. Common across heavy-duty haulage, tipper and tractor configurations.

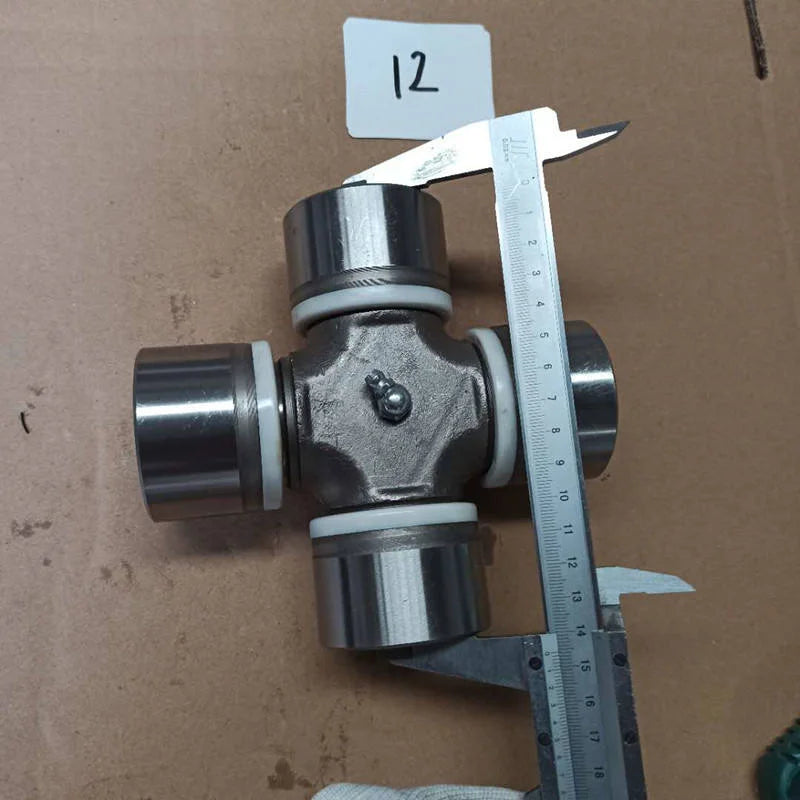

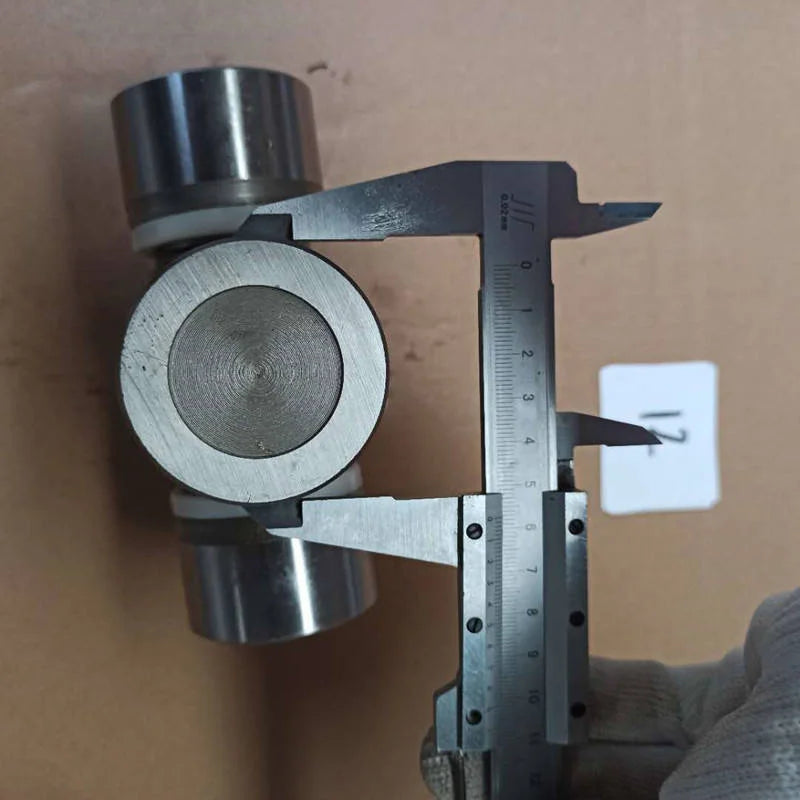

Configuration: Heavy-duty universal joint assembly built to 57×144 specification, featuring a forged steel cross, precision needle bearings and reinforced bearing caps designed for high torque transmission and long service life in demanding truck operations.
Function: Transfers torque smoothly through the driveshaft while allowing angular movement between drivetrain components. Helps minimize vibration, driveline noise and stress under heavy loads, improving drivetrain reliability and operational stability.
Technical Specifications
Type: Driveshaft Universal Joint (U-Joint) Assembly
Material: Forged high-strength steel cross with hardened needle bearings and reinforced caps
Application: Direct-fit replacement for Sinotruk HOWO A7, T7H, TX and HOWO 6×4/8×4 Trucks (2010–2024) using U-joint assembly WG9319313250 (57×144)
Cross-Reference: WG9319313250
Installation: Press-fit installation into the propeller shaft yoke; professional installation recommended to ensure correct seating, driveline phasing and balance
Service Interval: Replace when driveline vibration, knocking noise, excessive play or seized bearing movement is detected during inspection
Delivery & Availability
Stock Options: Available
Delivery Time: 3–7 days internationally
