Relay Car & Automotive Relay Replacements

How a Relay Actually Works

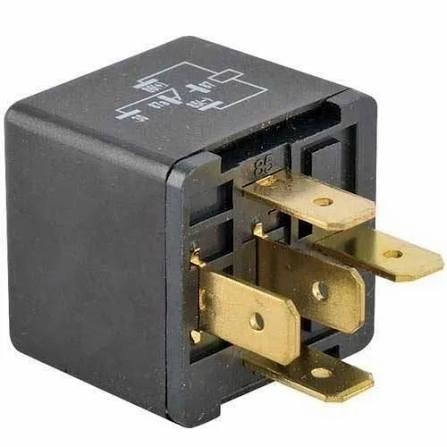

A relay is essentially an electrically operated switch. A small current from your ignition, a dash switch, or the ECU energises an internal coil, which closes a separate high-current circuit without routing that heavier current through the switch itself. This protects delicate switches and wiring from the higher amperage draw of components like headlights, horns, and fuel pumps, and it's why relay failure often affects one specific circuit rather than the whole vehicle.

Signs a Relay Has Failed

• A component, such as headlights or the fuel pump, stops working entirely with no dimming or warning
• A clicking sound from the relay itself with no corresponding action from the circuit it controls
• Intermittent operation that worsens with vibration or engine heat
• A component working only when tapped or jolted, often a sign of failing internal contacts
• Multiple components failing at once, which can point to a shared relay or fuse box issue

Choosing the Right Relay for Your Circuit

Not every relay car listing suits every application, and getting the pin configuration wrong is the most common reason for a return.

1. Confirm your relay's pin count and layout match the socket in your fuse box or relay panel exactly
2. Match the amperage rating to the circuit's actual draw; undersized relays fail prematurely under sustained load
3. For lighting upgrades, a dedicated relay and harness kit protects your factory wiring from the higher draw of HID or LED conversions
4. Truck relays often carry higher amperage ratings than passenger vehicle equivalents; don't assume they're interchangeable
5. Where multiple relays share a panel, a universal relay box gives you flexibility to add circuits without modifying factory wiring

Relays for Lighting Upgrades

Aftermarket lighting is one of the most common reasons drivers add a relay to a circuit that didn't originally need one. Running spotlights, light bars, or an HID conversion directly through a factory switch can overload it quickly, which is why a relay harness for hid headlights setup routes that higher current safely, using the original switch only as a low-current trigger. The same logic applies to a headlight relay harness fitted to older vehicles with dim factory lighting, where voltage drop across aged wiring is often the real cause of poor illumination rather than the globes themselves.

Automotive Relay vs Relay Switch, What's the Difference

The terms get used interchangeably, but there's a practical distinction worth knowing. An automotive relay typically refers to the small plug-in unit itself, while relay switch sometimes describes the combined assembly of a manual switch feeding a relay circuit, common in accessory installations like driving lights or winches. On this page, both terms point to compatible stock, and we've noted where a listing includes the manual switch component versus the relay alone.

Fitment and Installation Support

Relays are generally straightforward to test and replace, but confirming pin layout and amperage before ordering saves a return trip. Send us your vehicle details or a photo of your existing relay and socket, and our team will confirm the correct match, including whether a universal relay box suits your setup better than a direct replacement unit.
