Description
Product Overview

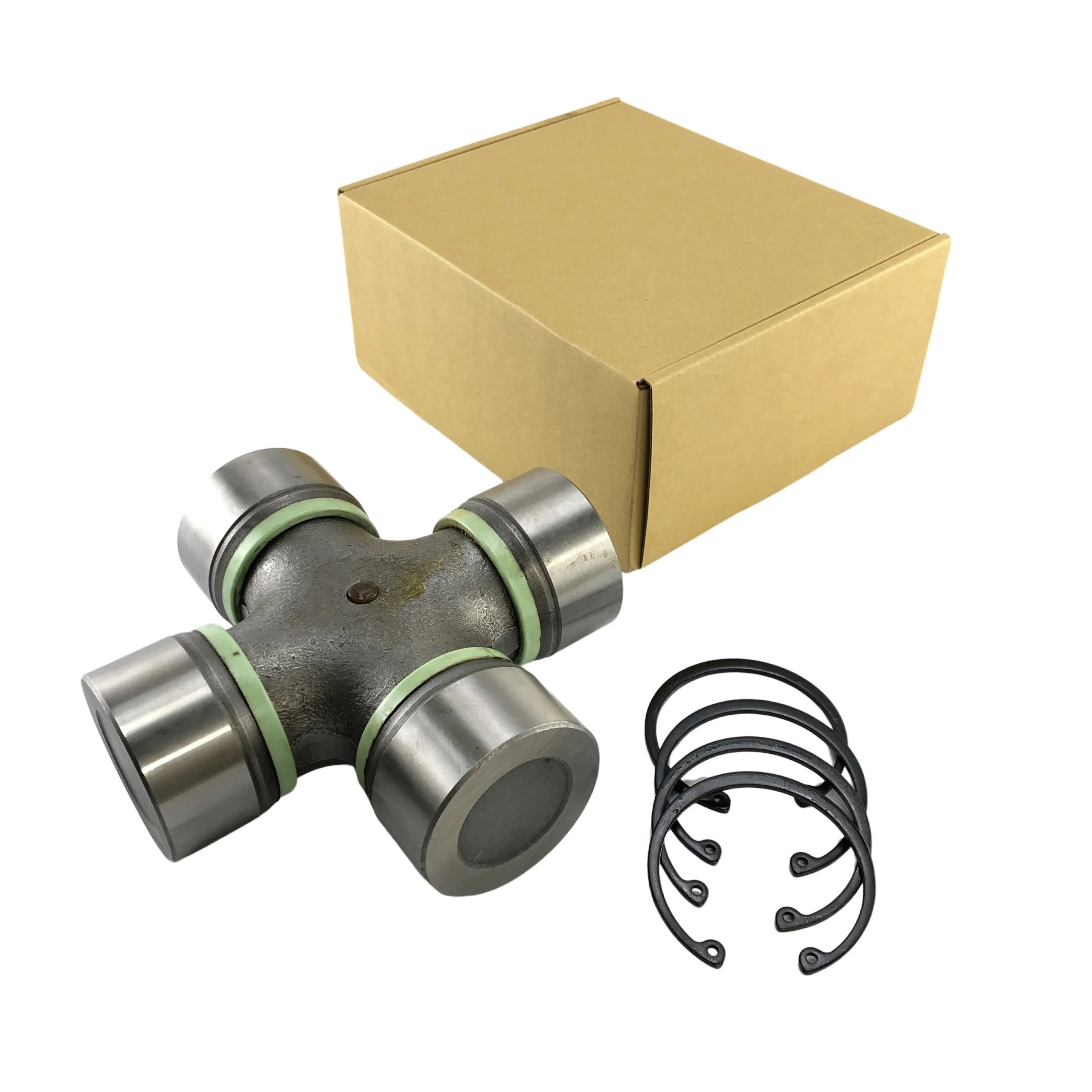

Part Name: Universal Joint (U-Joint) Assembly
Part Number: S3740-01380
Vehicle Compatibility: Hino 700 Series Trucks powered by the E13C engine (2003–2024), fitted with heavy-duty propeller shaft/driveshaft systems requiring a 65×172 mm universal joint. Common on long-haul, tipper and construction configurations within the Hino 700 range.

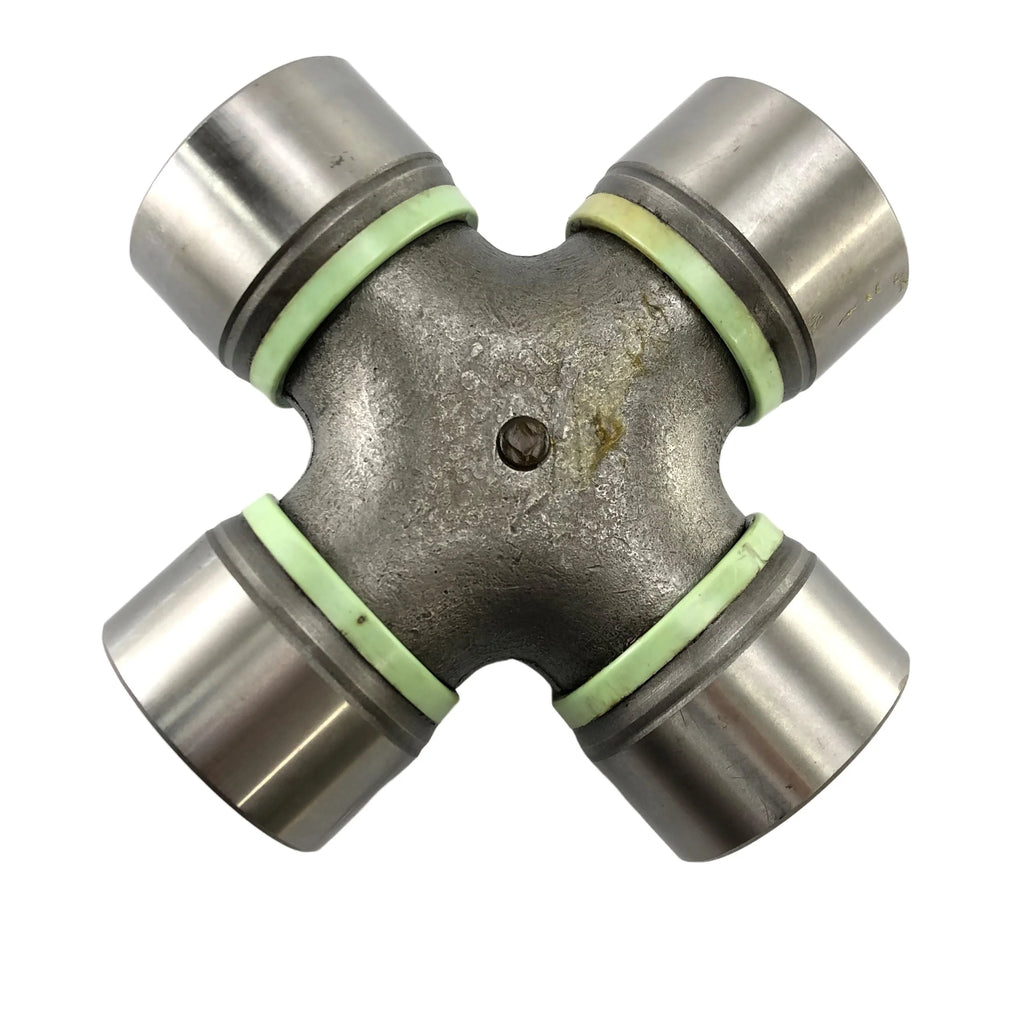

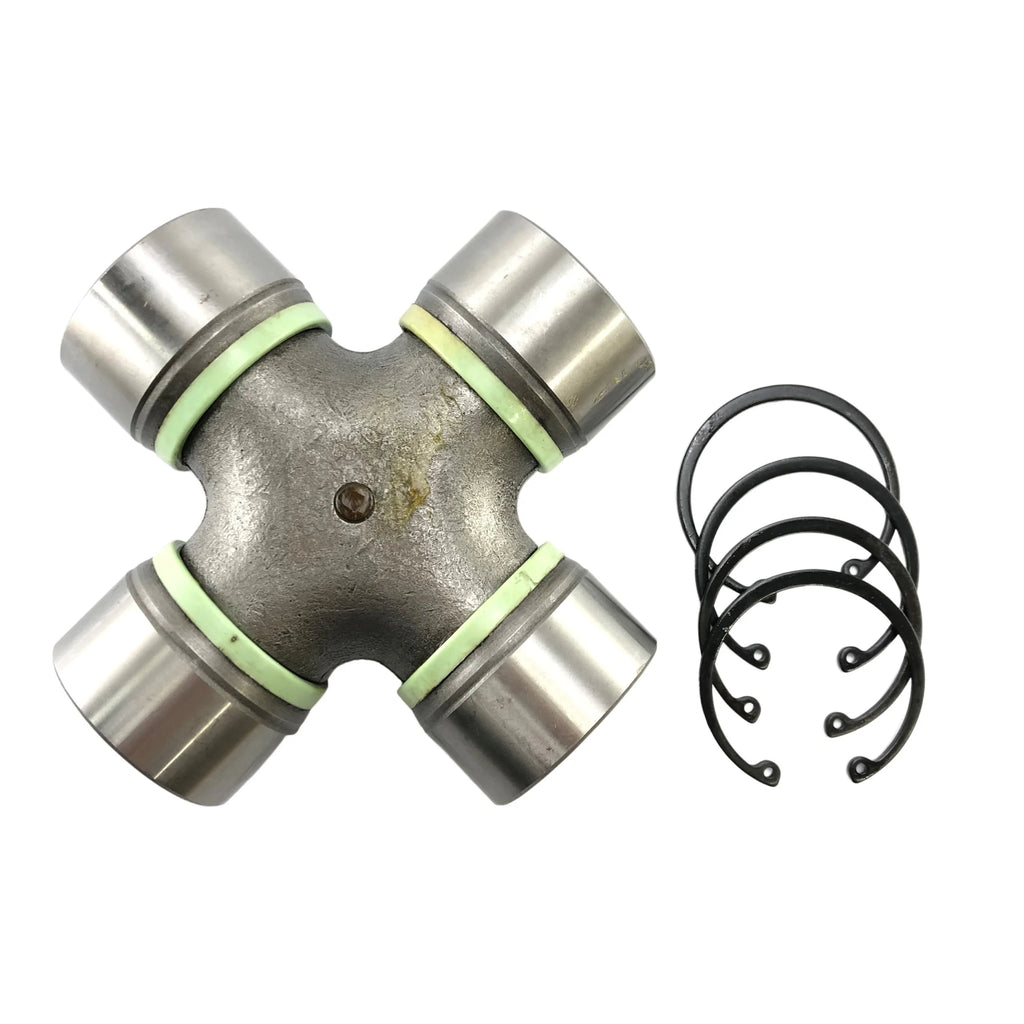

Configuration: Heavy-duty universal joint assembly manufactured to 65×172 mm specification, featuring a forged steel cross with precision needle bearings and reinforced bearing caps for stable driveline alignment under high torque loads.
Function: Transfers engine torque through the driveshaft while allowing controlled angular movement between drivetrain components, reducing vibration, noise and mechanical stress during operation.
Technical Specifications
Type: Driveshaft Universal Joint (U-Joint) Assembly
Material: Forged high-strength steel cross with hardened needle bearings and reinforced caps
Application: Direct-fit replacement for Hino 700 E13C Trucks (2003–2024) using U-joint assembly reference S3740-01380 (65×172 mm)
Cross-Reference: S3740-01380
Installation: Press-fit installation into the propeller shaft yoke; professional installation recommended to ensure correct seating, driveline phasing and balanced rotation
Service Interval: Replace when driveline vibration, knocking noise, excessive play or seized bearing movement is observed during inspection
Delivery & Availability
Stock Options: Available
Delivery Time: 3–7 days internationally
