Description
Product Overview

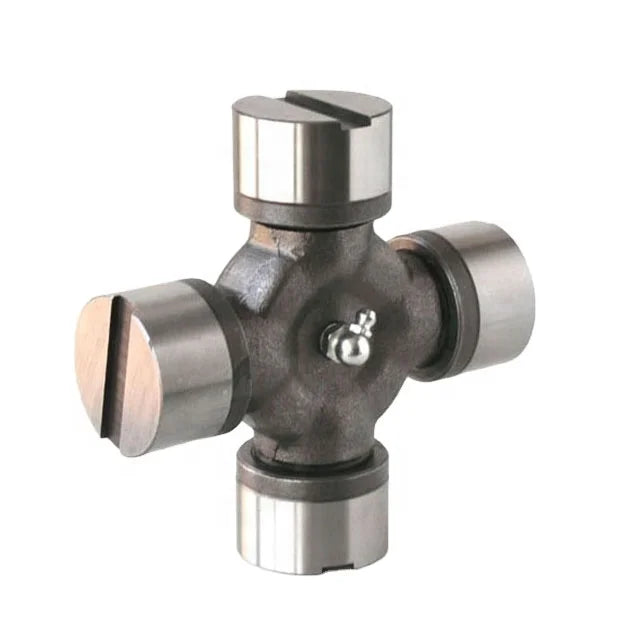

Part Name: Universal Joint (U-Joint) Cross Assembly
Part Number: KBR-1062-00 (GUH+62)
Vehicle Compatibility: Hino 300 Series (Dutro), 500 Series (Ranger) and 700 Series (Profia) Trucks (2001–2024) using compatible propeller shaft or PTO driveline systems that specify a GUH+62 universal joint cross size. Applicable across medium- and heavy-duty configurations depending on shaft specification.
Configuration: Alloy steel universal joint cross assembly engineered with a forged cross, precision needle bearings and reinforced bearing caps to support high torque loads and continuous-duty operation in commercial truck drivelines.
Function: Transfers torque through the driveshaft or PTO shaft while allowing angular movement between connected components, helping reduce vibration, driveline noise and mechanical stress under load.
Technical Specifications
Type: Driveshaft / PTO Universal Joint (U-Joint) Cross
Material: High-strength alloy steel cross with hardened needle bearings and reinforced caps
Application: Direct-fit replacement for Hino 300, 500 & 700 Series Trucks (2001–2024) requiring a GUH+62 cross specification, including Ranger, Dutro and Profia platforms
Cross-Reference: KBR-1062-00 / GUH+62
Installation: Press-fit installation into the propeller shaft or PTO yoke; professional installation recommended to ensure correct seating, driveline phasing and balance
Service Interval: Replace when driveline vibration, knocking noise, excessive play or seized bearing movement is observed during inspection
Delivery & Availability
Stock Options: Available
Delivery Time: 3–7 days internationally
