Description
Product Overview:

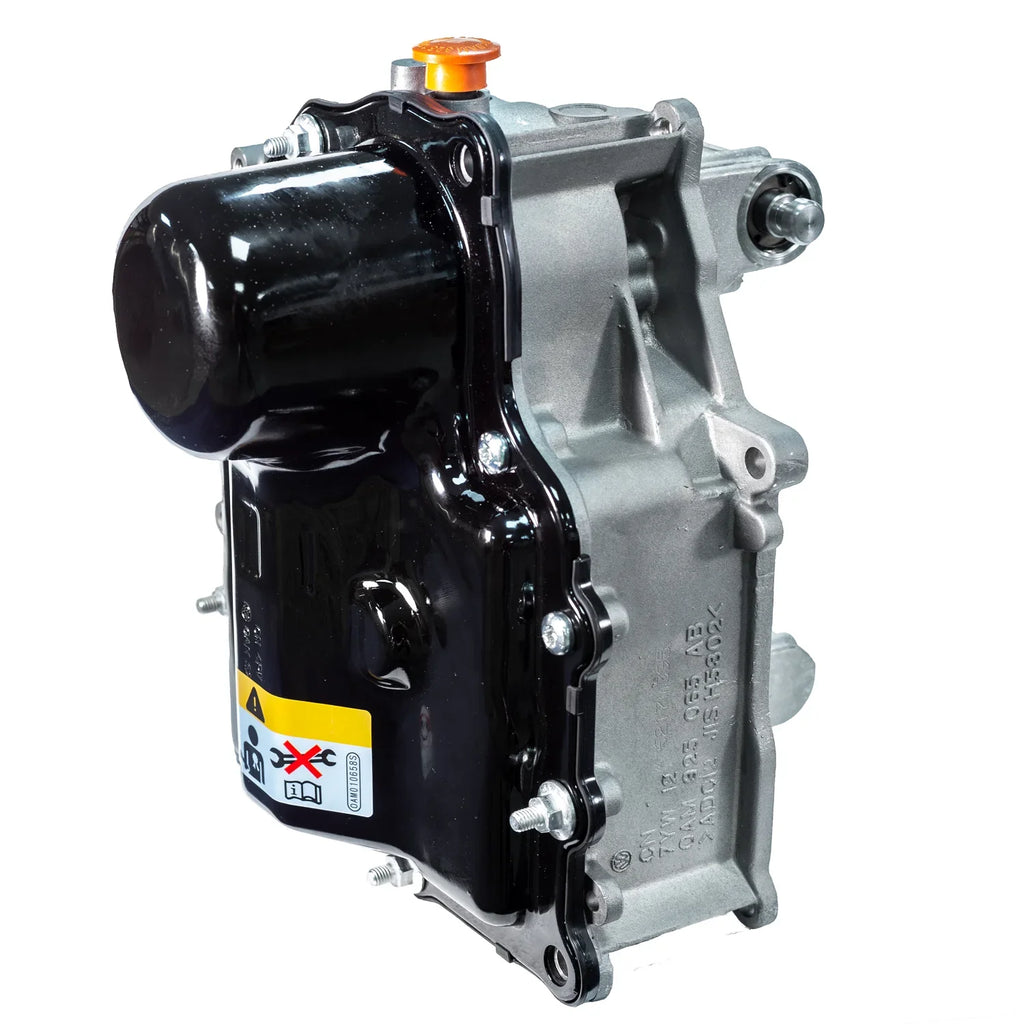

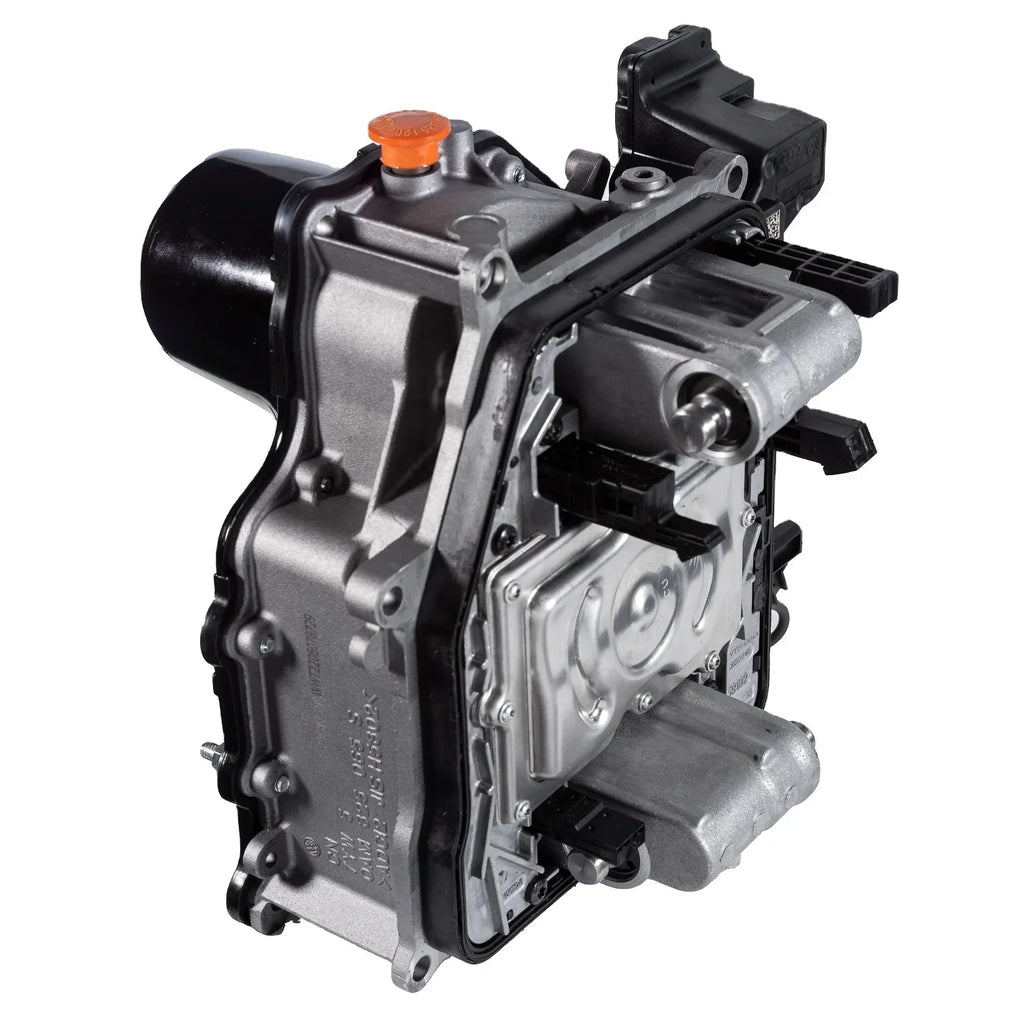

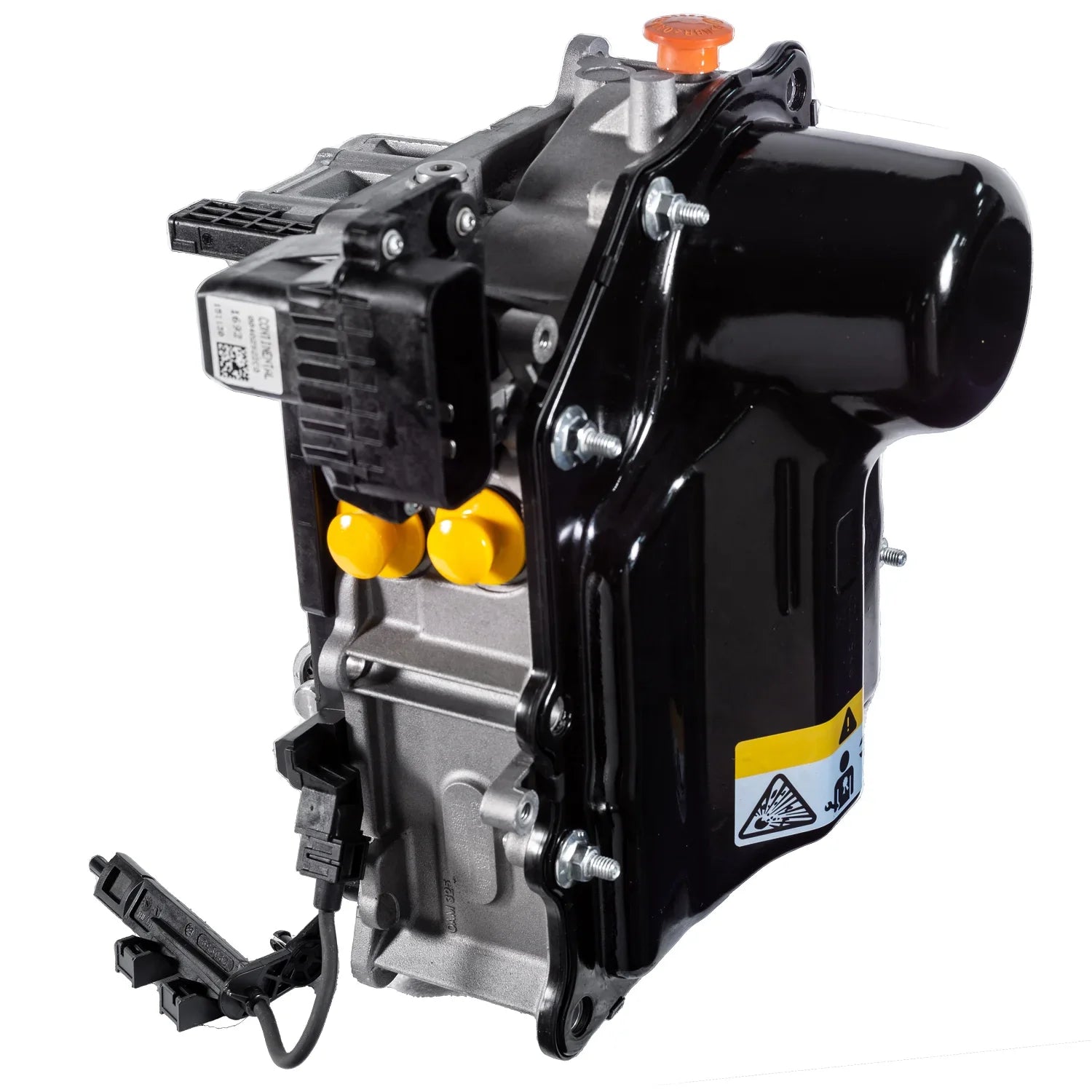

Part Name: DQ200 DSG 7‑Speed Transmission Mechatronic (Valve Body & TCU / TCM)
OEM / OE Part Numbers: 0AM325025H, 0AM927769D
Vehicle Compatibility: VW Group vehicles (2007–2020) using the DQ200 DSG gearbox:
Volkswagen: Golf Mk5–Mk8, Passat B6–B8, Jetta 5–6, Polo 5–6, Beetle, Scirocco, Touran, Tiguan, Arteon, Caddy, T‑Roc; Audi: A1 (8X/GB), A3 (8P/8V), Q3; ŠKODA: Fabia Mk2–Mk3, Octavia Mk2–Mk4, Superb Mk2–Mk3, Yeti, Rapid, Karoq; SEAT: Ibiza Mk4–5, Leon Mk2–4, Arona, Ateca, Tarraco
Configuration: Integrated mechatronic unit with electronic TCU and hydraulic valve body
Function: Controls gear selection, clutch actuation, and hydraulic pressure in the 7‑speed DSG transmission for smooth, precise, and efficient shifting
Technical Specifications:
Type: 7‑speed DSG (Direct Shift Gearbox) with dual dry clutches
Torque Capacity: 250 Nm (factory spec)
Orientation: Front‑wheel drive, transverse layout (VAG 0AM / 0CW)
Weight: ~70–72 kg
Fluid Requirements:
Mechatronic: ~1.0 L
Gearbox: ~1.7 L DSG fluid (VAG G052 512 A2 + G004 000 M2)
Service Interval: Fluid & filter replacement every ~60,000 km
