Description
Product Overview

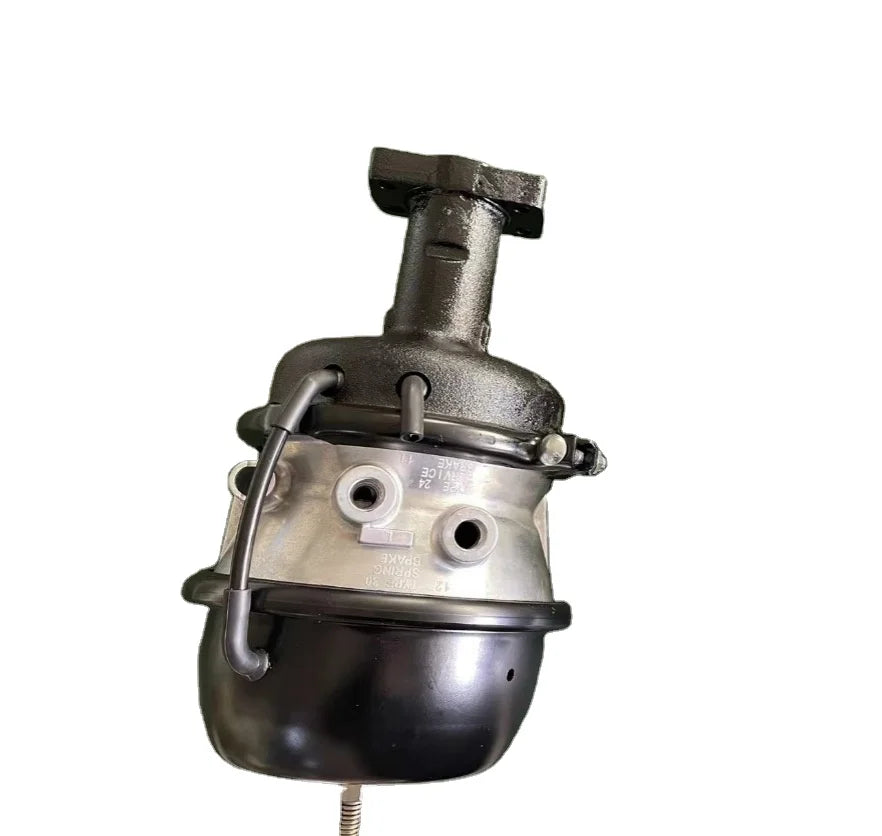

Part Name: Spring Brake Actuator Chamber (LH)
Part Number: 3107211829
Vehicle Make / Manufacturer: Isuzu
Vehicle Type: Heavy-Duty Truck
Compatible Models / Series: Isuzu DECA360, FVR, FVZ, GIGA Series
Component Type: Dual Combination Service & Spring Parking Brake Chamber (Left Hand)
System: Braking System
Application: Rear left-hand drive axle wheel brake mounting bracket.
Function: Acts as service air brake actuator under air pressure while utilizing a heavy mechanical coil spring for fail-safe emergency parking brake holding.
Technical Specifications
Position / Orientation:Left-Hand (LH)
Chamber Size:Type 24/30 combination spring brake chamber
Stroke Length:64 mm (2.5 inch) maximum stroke
Pushrod Thread:M16 x 1.5 threaded clevis rod
Air Inlet Ports:Dual M16 x 1.5 metric air ports
Delivery & Availability
Stock Options: High-quality aftermarket & genuine-equivalent options available where applicable
MOQ: 1
Delivery Time: 3–7 days
Condition: New
