Description
Product Overview

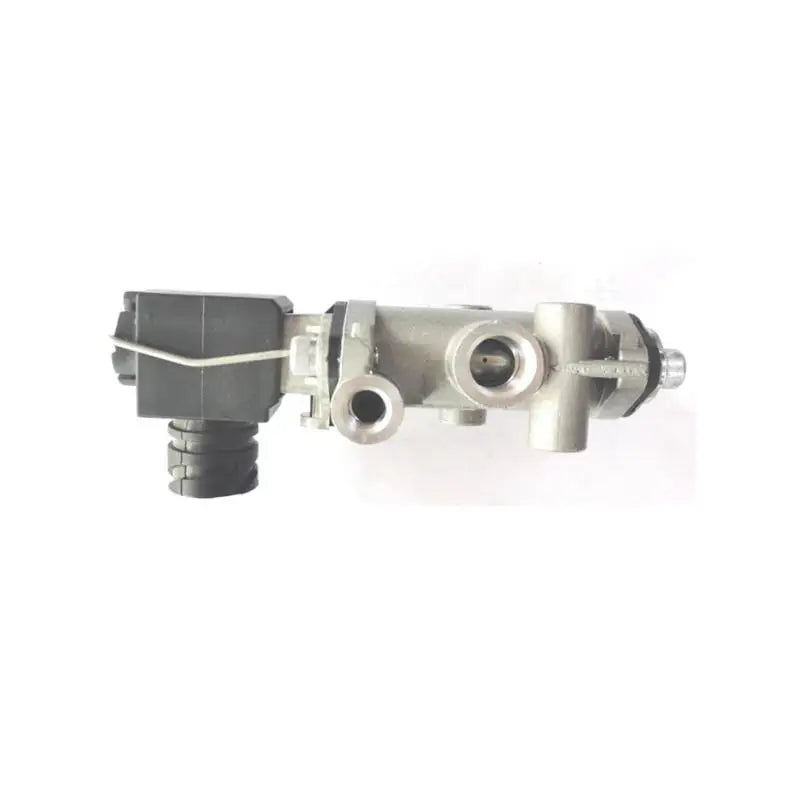

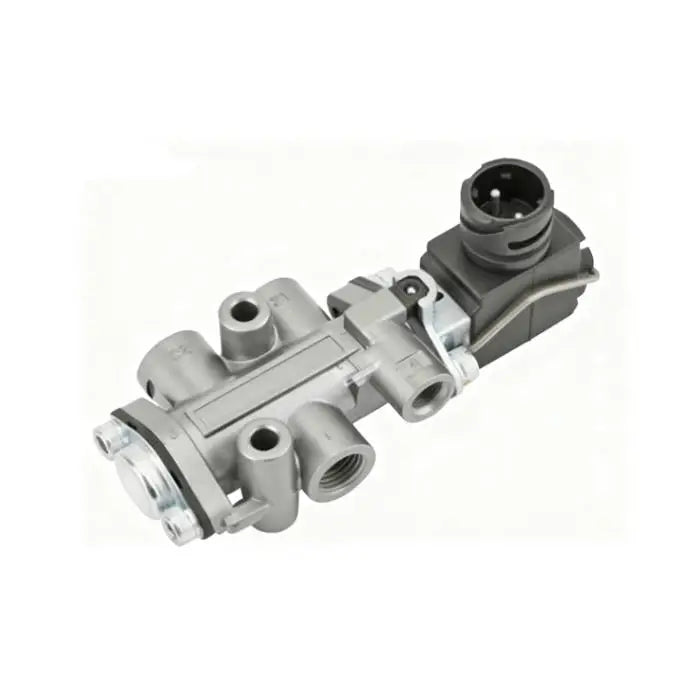

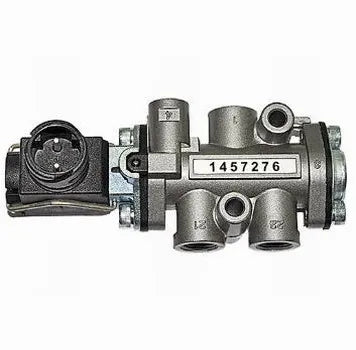

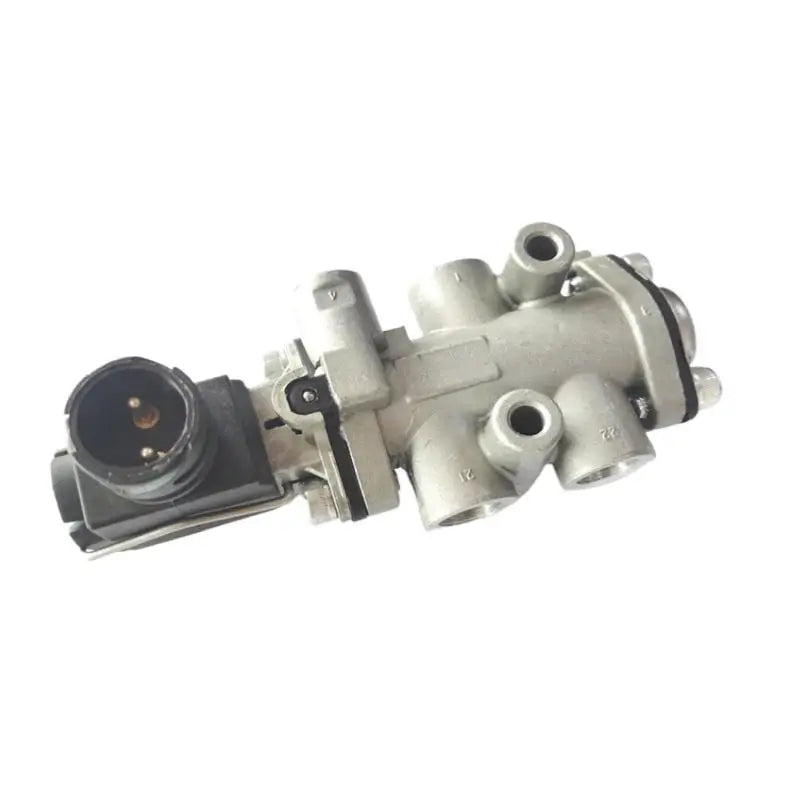

Part Name: Solenoid Valve Assembly
Part Number: 1457276
Vehicle Make / Manufacturer: DAF Trucks
Vehicle Type: Heavy-Duty Truck
Compatible Models / Series: CF75, CF85, XF95, XF105
Compatible Engines: PACCAR MX Series
Component Type: 3/2-Way Electro-Pneumatic Solenoid Valve
System: Transmission & Gearbox Control
Application: Gearbox splitter and range-change pneumatic control system on DAF commercial vehicles.
Function: Converts 24V electrical signals into precise directional compressed air pulses to actuate transmission gear selection cylinders.
Technical Specifications
Operating Voltage:24V DC
Operating Pressure:8.0 to 10.0 bar
Housing Material:Reinforced polyamide polymer and zinc-plated steel
Connector Type:2-pin DIN electrical connection plug
Port Size:Metric M12 x 1.5 air ports
Delivery & Availability
Stock Options: High-quality aftermarket & genuine-equivalent options available where applicable
MOQ: 1
Delivery Time: 3–7 days
Condition: New
