Description
Product Overview

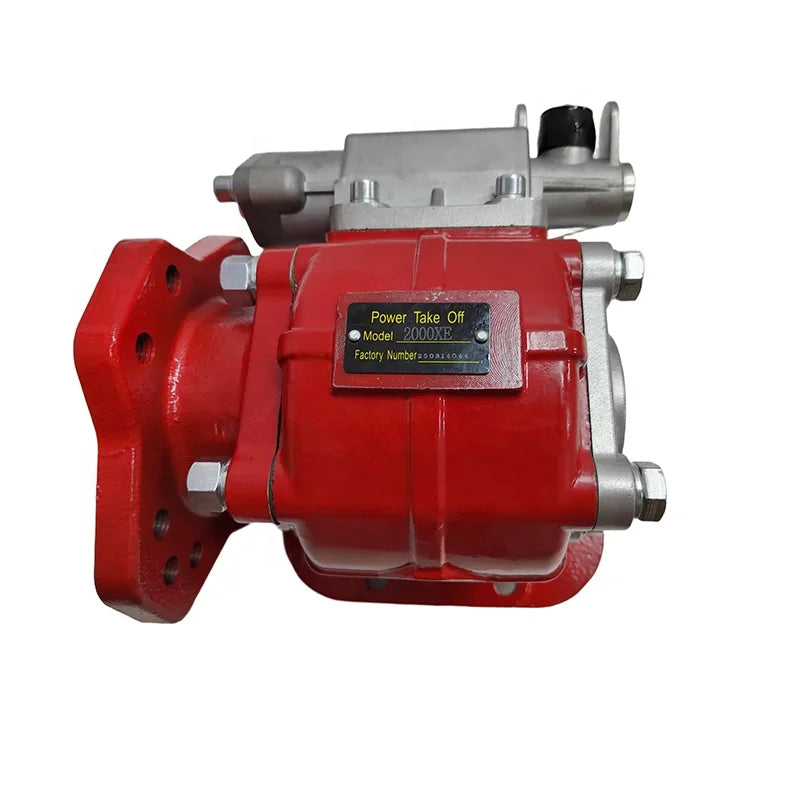

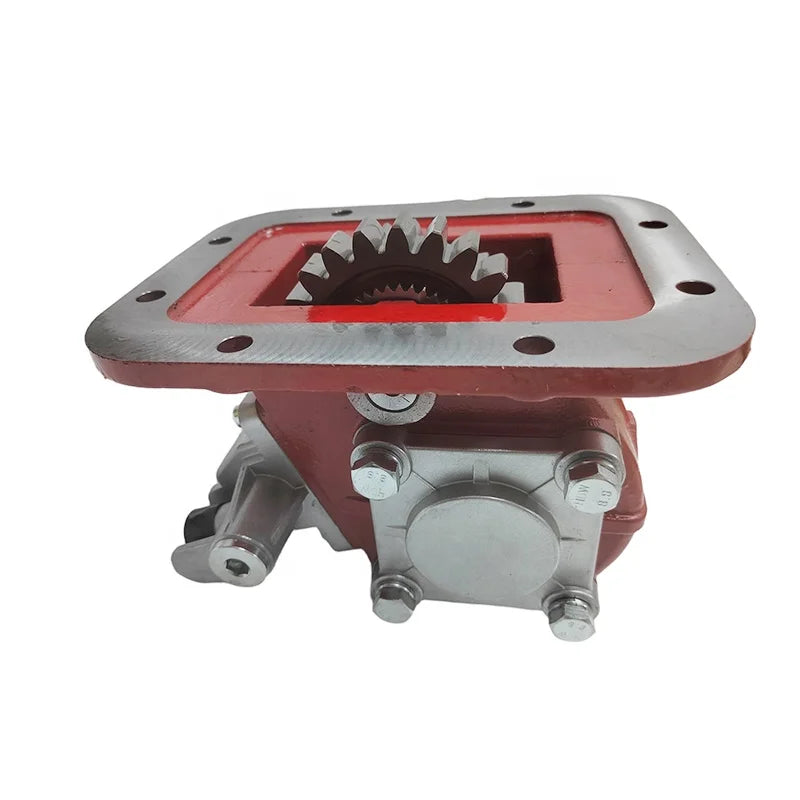

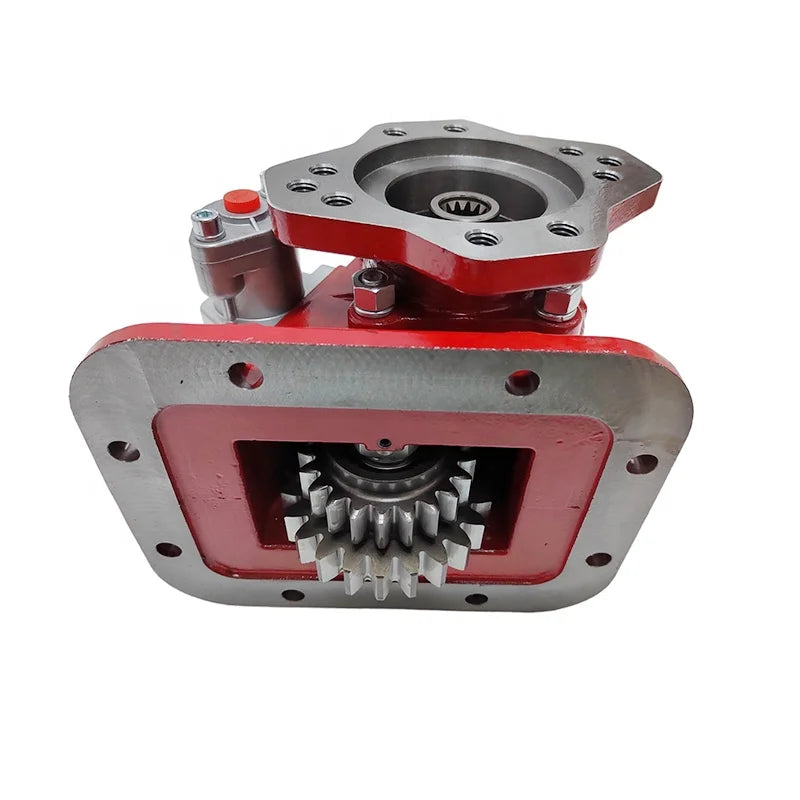

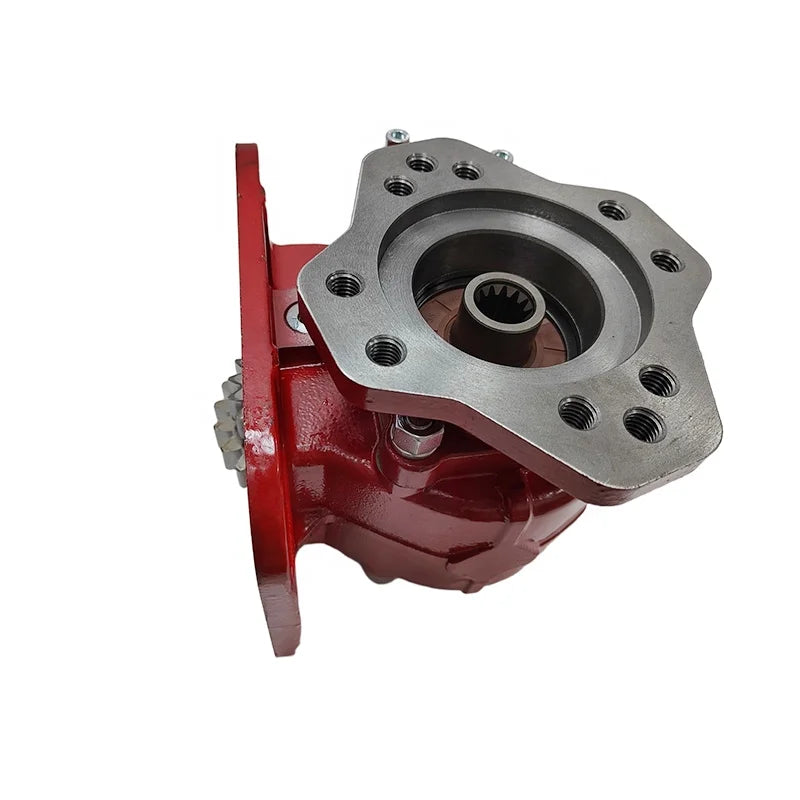

Part Name: Power Take-Off (PTO) Gearbox Unit
Part Number: WA20-08-7005
Vehicle Make / Manufacturer: Universal Commercial Truck
Vehicle Type: Heavy-Duty Vocational Truck
Compatible Applications: Commercial trucks fitted with standard 6-bolt transmission PTO SAE openings
Component Type: Transmission Auxiliary Drive Gearbox
System: Transmission & Auxiliary Hydraulic System
Application: Transmission side-mounted gear drive unit driving hydraulic pumps or winches.
Function: Taps rotational torque directly from main transmission countershaft gears to drive auxiliary hydraulic pumps, tipping hoists, and cranes.
Technical Specifications
Mounting Pattern:Standard SAE 6-Bolt mounting flange
Actuation Type:Air shift / Cable shift mechanism
Output Shaft:7/8 inch - 13 spline / Direct pump mount flange
Torque Rating:250 lb-ft (339 Nm) intermittent torque rating
Delivery & Availability
Stock Options: High-quality aftermarket & genuine-equivalent options available where applicable
MOQ: 1
Delivery Time: 3–7 days
Condition: New
