Description
Product Overview

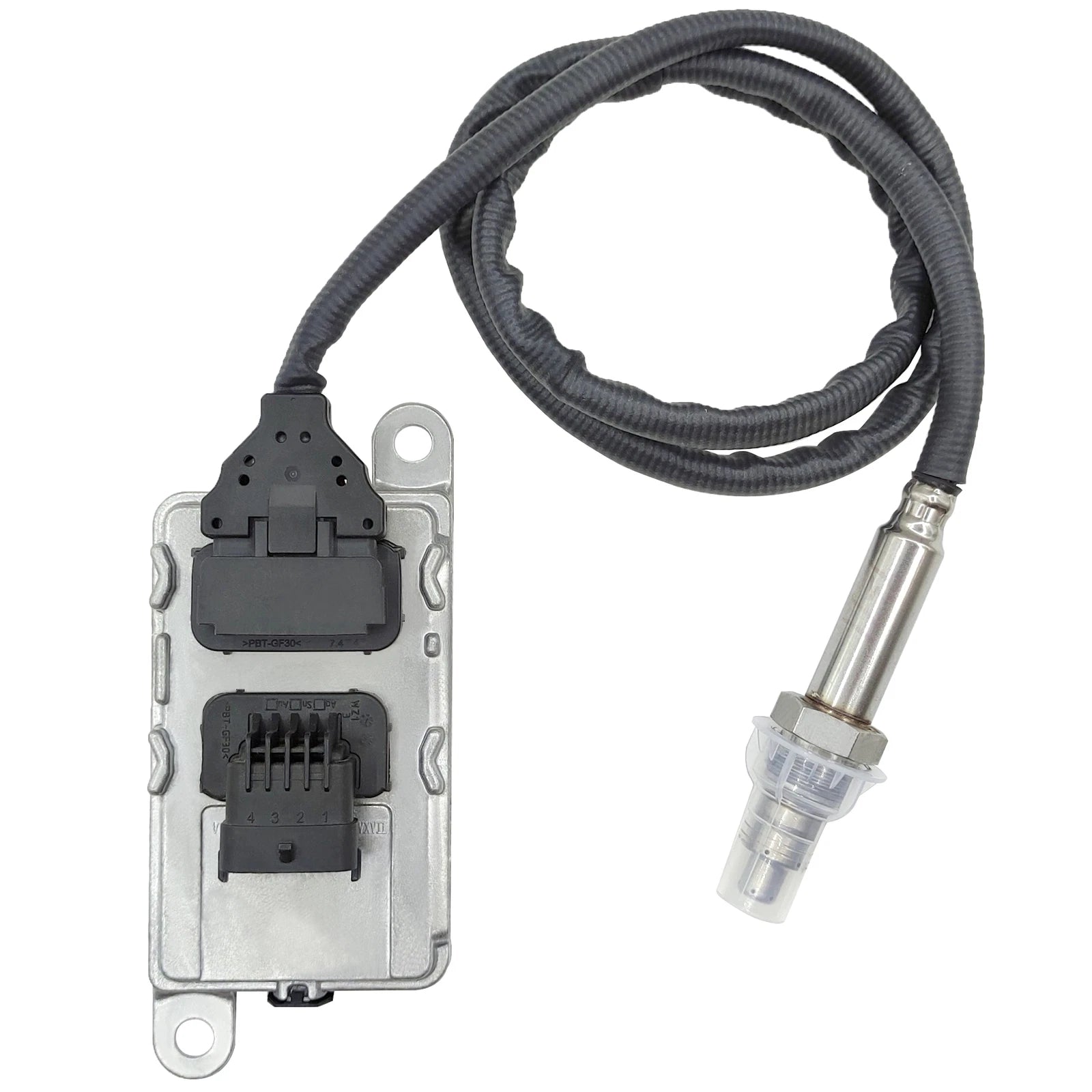

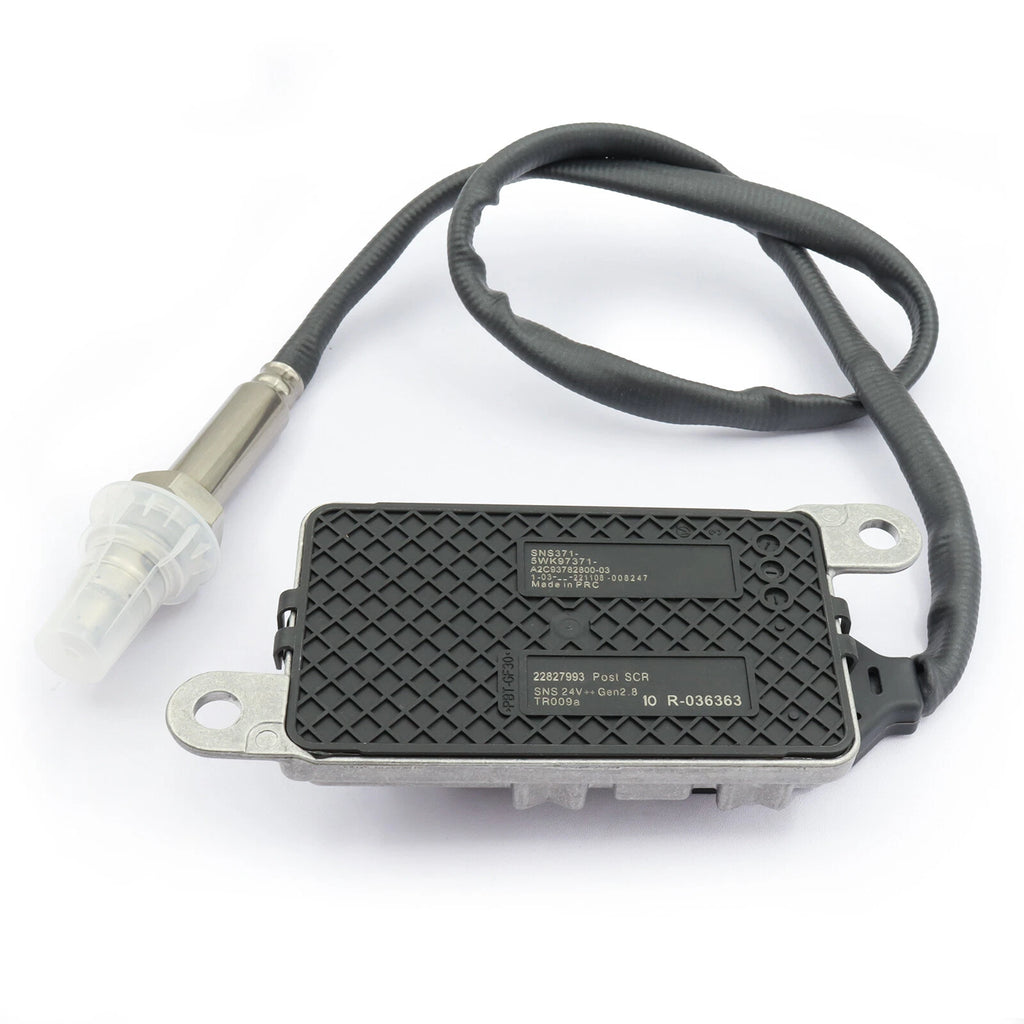

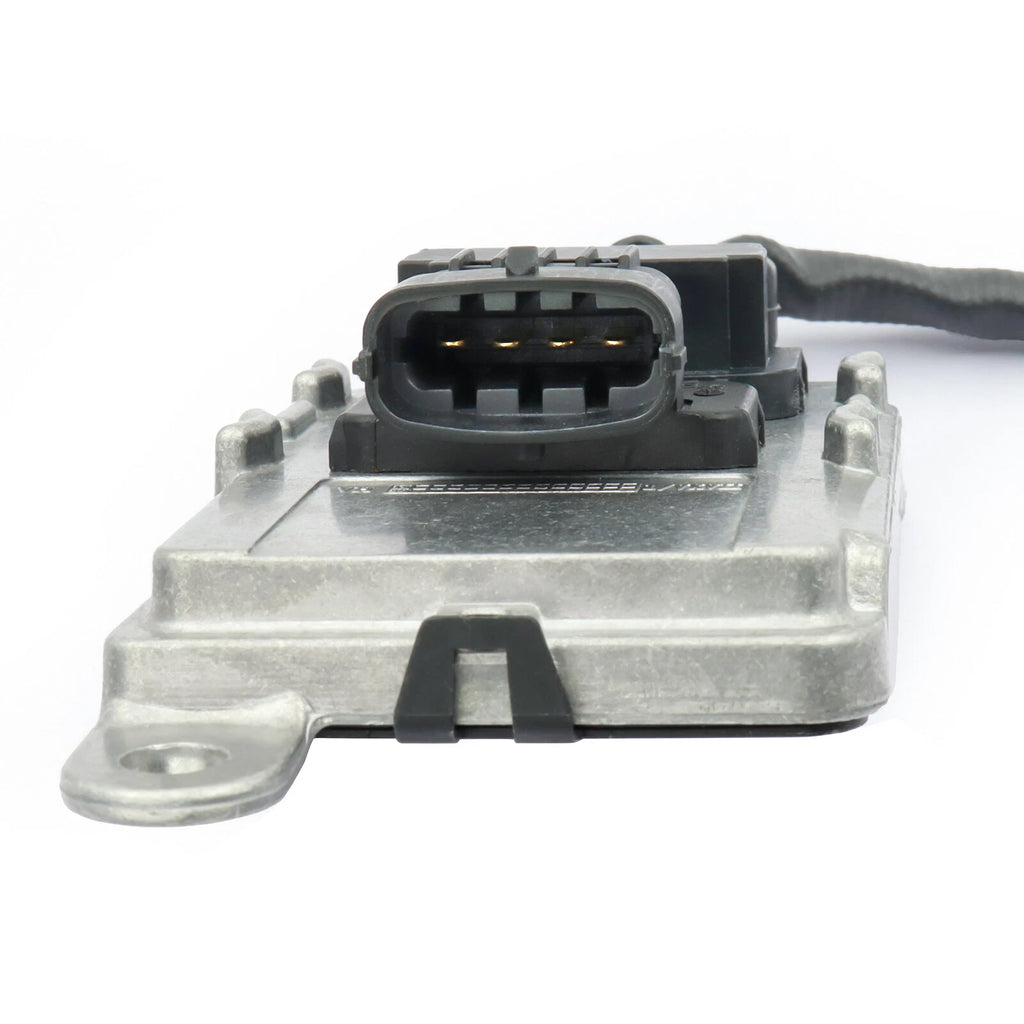

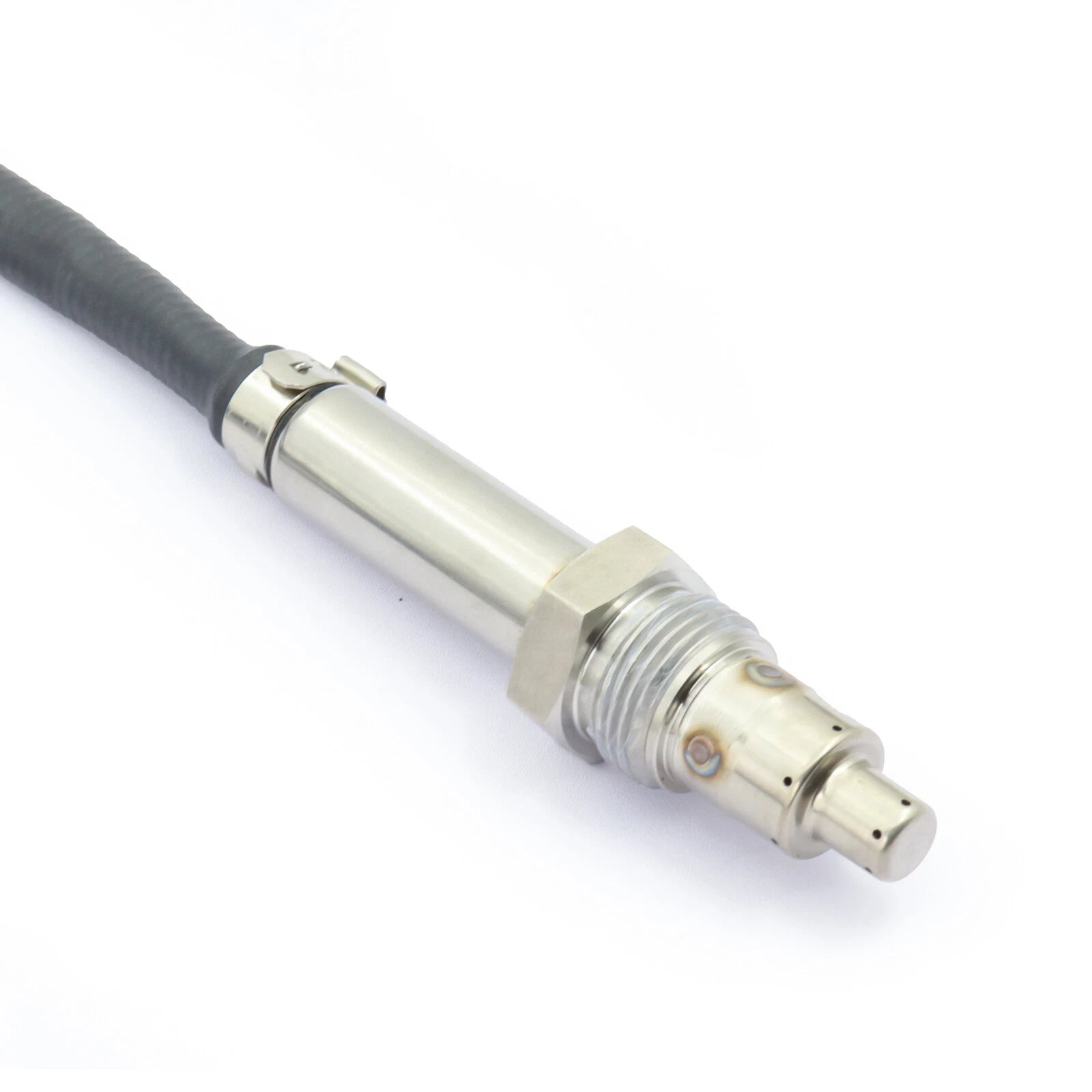

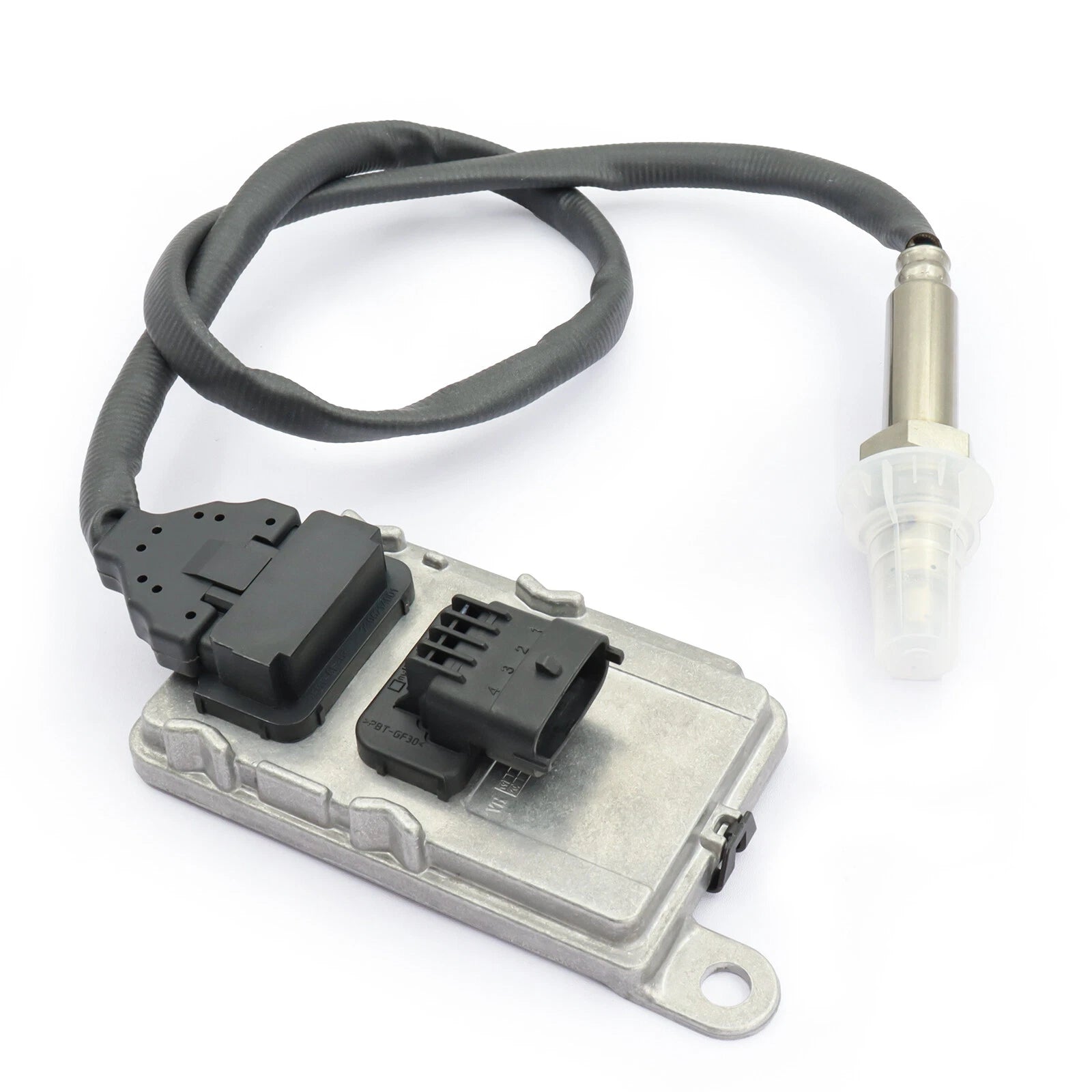

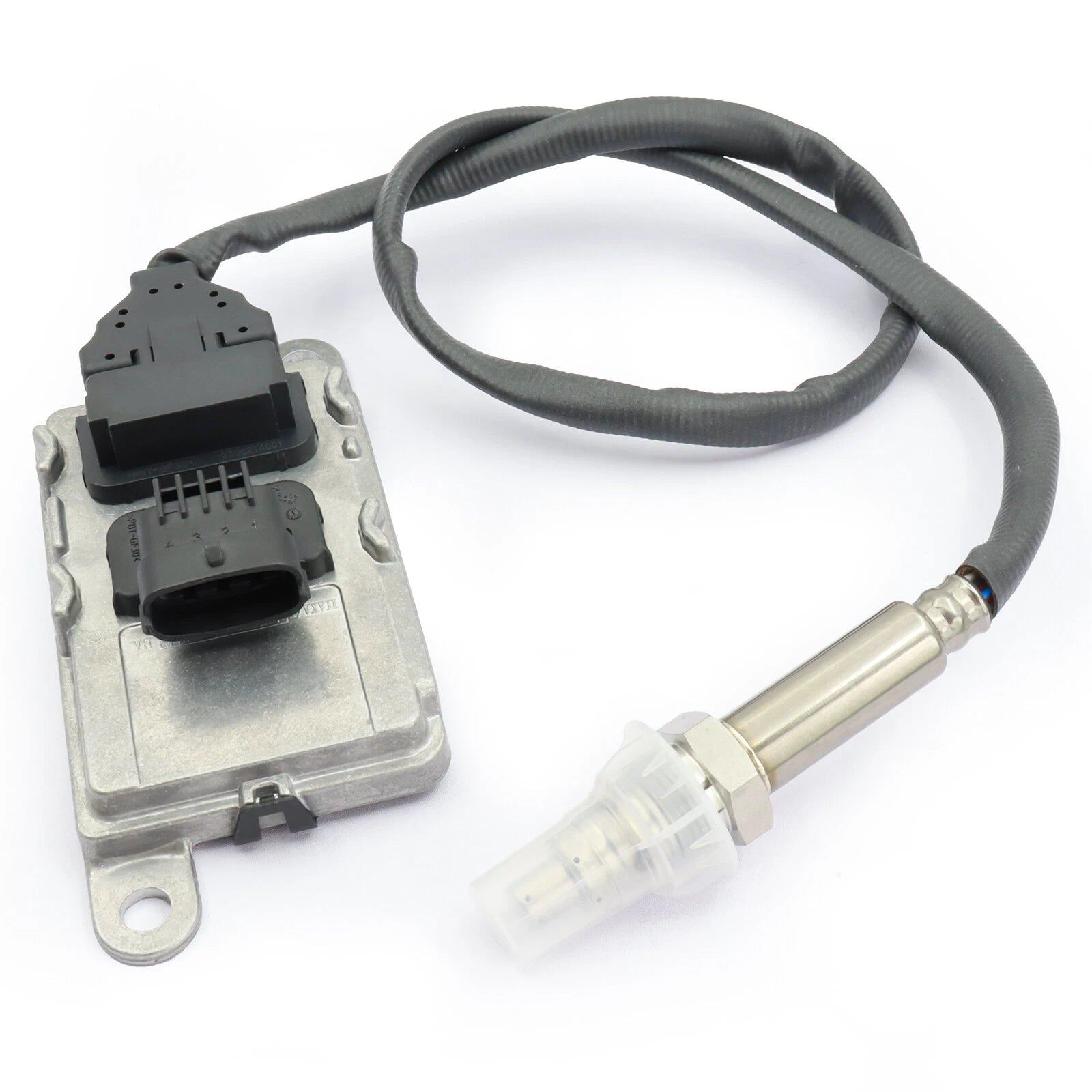

Part Name: Downstream Nitrogen Oxide Sensor (NOx)
Part Number: 22827993
Vehicle Compatibility: Volvo FH13, FH16, FM9, FM11, FM13 & FMX Trucks (2013–2024) equipped with Euro-emission SCR aftertreatment systems that require downstream NOx sensor reference 22827993. Positioned after the SCR catalyst to monitor post-treatment NOx levels for full emissions compliance.
Configuration: OE-style downstream NOx sensor featuring a ceramic sensing element, stainless-steel probe and high-temperature wiring harness with sealed connector. Designed for long-term durability in high-heat exhaust environments.
Function: Measures NOx concentration after the SCR catalyst to verify DEF dosing effectiveness, maintain emissions performance, prevent derate conditions and support accurate ECU diagnostics.
Technical Specifications
Type: Downstream (post-SCR) NOx Sensor
Material: Stainless-steel probe, ceramic detection core, heat-resistant wiring assembly
Application: Direct-fit downstream NOx sensor for Volvo FH13, FH16, FM9, FM11, FM13 & FMX Trucks (2013–2024) using part number 22827993
Cross-Reference: 22827993
Installation: Installs in the post-SCR exhaust port; professional installation recommended for correct torqueing, cable routing and clearing of stored diagnostic codes
Service Interval: Replace when SCR efficiency drops, NOx fault codes appear, DEF usage increases abnormally or the ECU logs inconsistent downstream readings
Delivery & Availability
Stock Options: Available
Delivery Time: 3–7 days internationally
