Description
Product Overview

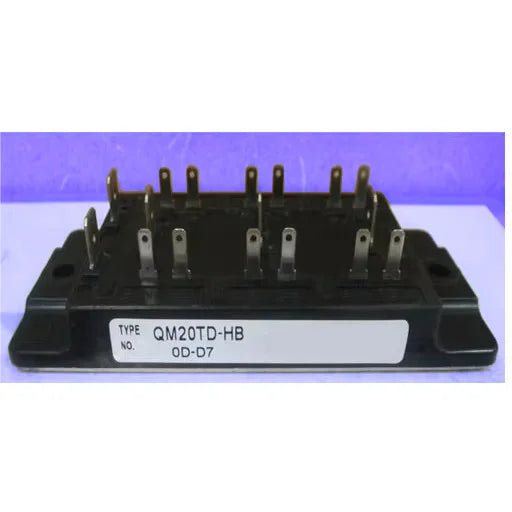

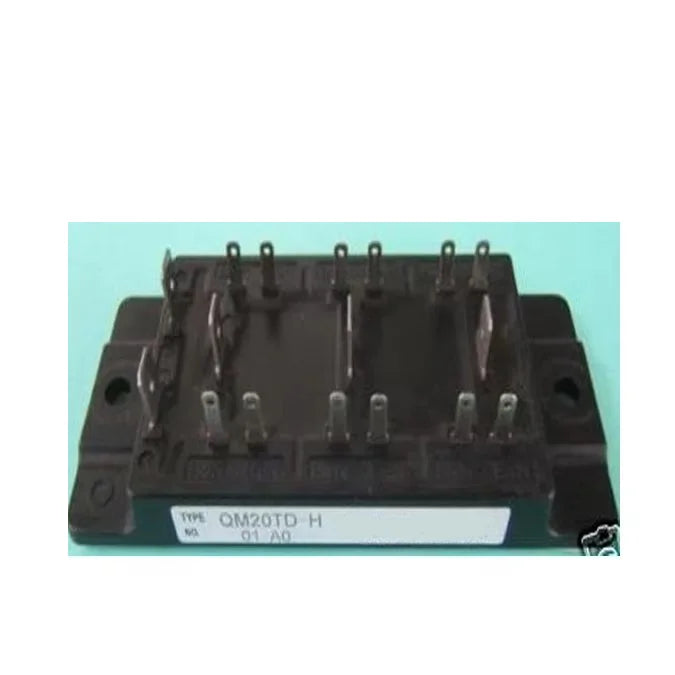

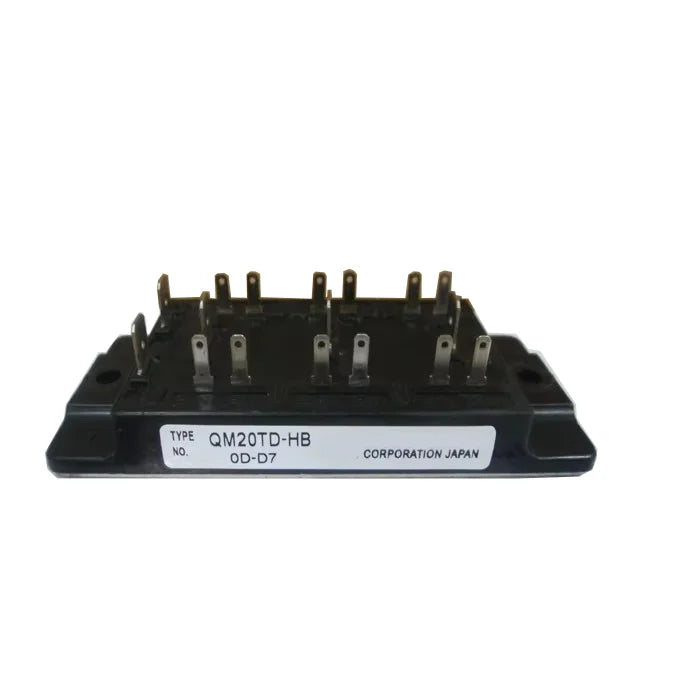

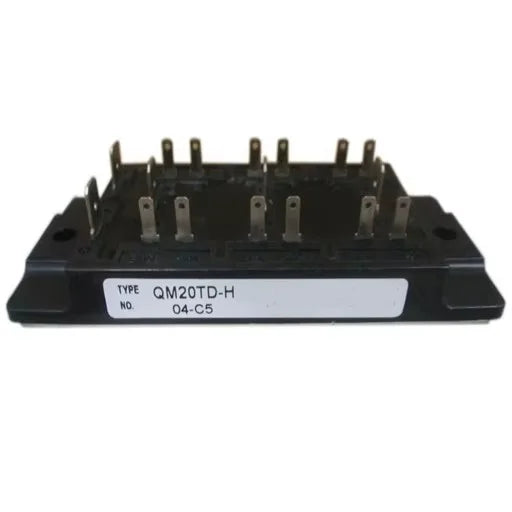

Part Name: IGBT Power Transistor Module
Part Number: QM20TD-H / QM20TD-HB
Vehicle Compatibility: Mitsubishi industrial control equipment including inverter drives, motor controllers, and automation power modules using QM-series IGBT modules. Designed for industrial electronic systems manufactured within the stated year range (2005–2020).
Configuration: Dual IGBT power module assembly engineered for high-efficiency switching and thermal stability in industrial power control circuits.
Function: Regulates high-voltage power flow in inverter and motor control systems, ensuring efficient switching performance, stable current output, and reliable operation of industrial automation equipment.
Technical Specifications
Type: IGBT Power Module
Material: High-temperature semiconductor module with insulated baseplate and copper conductor terminals
Application: Mitsubishi industrial inverter and motor drive systems using QM20TD-series IGBT modules (2005–2020)
Cross-Reference: Compatible with equivalent QM20TD-H and QM20TD-HB IGBT module assemblies
Installation: Direct replacement for matching module footprint and terminal configuration; professional installation recommended
Service Interval: Replace when overheating, switching failure, or power output instability occurs
Delivery & Availability
Stock Options: Available
Delivery Time: 3–7 working days for international delivery
