Description
Product Overview:

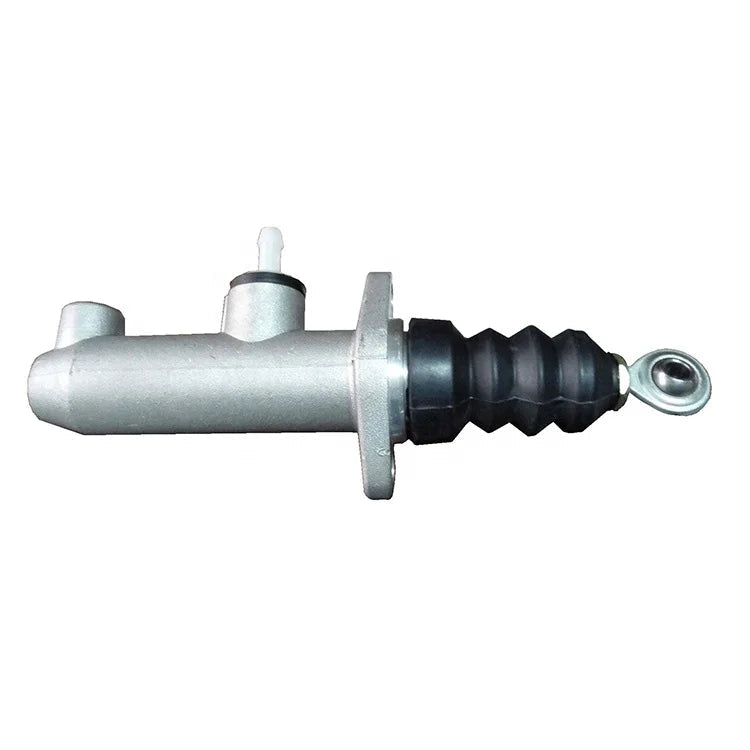

Part Name: Heavy Duty Truck Clutch Master Cylinder for DAF Trucks
Part Numbers: 1339412, 1348733, 1265209, 1313142, 1298753
Vehicle Compatibility: Suitable for DAF heavy-duty trucks (1998–2015), including LF, CF, and XF series equipped with manual transmission systems. Widely used in European fleet and long-haul applications.
Configuration: Hydraulic clutch master cylinder with integrated piston and reservoir connection port
Function: Converts clutch pedal movement into hydraulic pressure, transferring force to the clutch slave cylinder to enable smooth gear changes and reliable transmission operation
Technical Specifications:
Type: Hydraulic clutch master cylinder
Material: Cast aluminum body with steel piston and reinforced seals
Bore Size: ~19–22 mm (varies by model)
Application: Designed for DAF LF, CF, XF trucks with manual gearboxes and hydraulic clutch systems
Orientation: Firewall-mounted unit, connected between clutch pedal linkage and hydraulic line to slave cylinder
Service Interval: Replace every 100,000–120,000 km or earlier if hydraulic fluid leakage, pedal softness, or clutch actuation issues occur
Delivery & Availability:
Stock Options: OEM-equivalent clutch master cylinders available for DAF trucks
Delivery Time: 3–5 days internationally
