Description
Product Overview

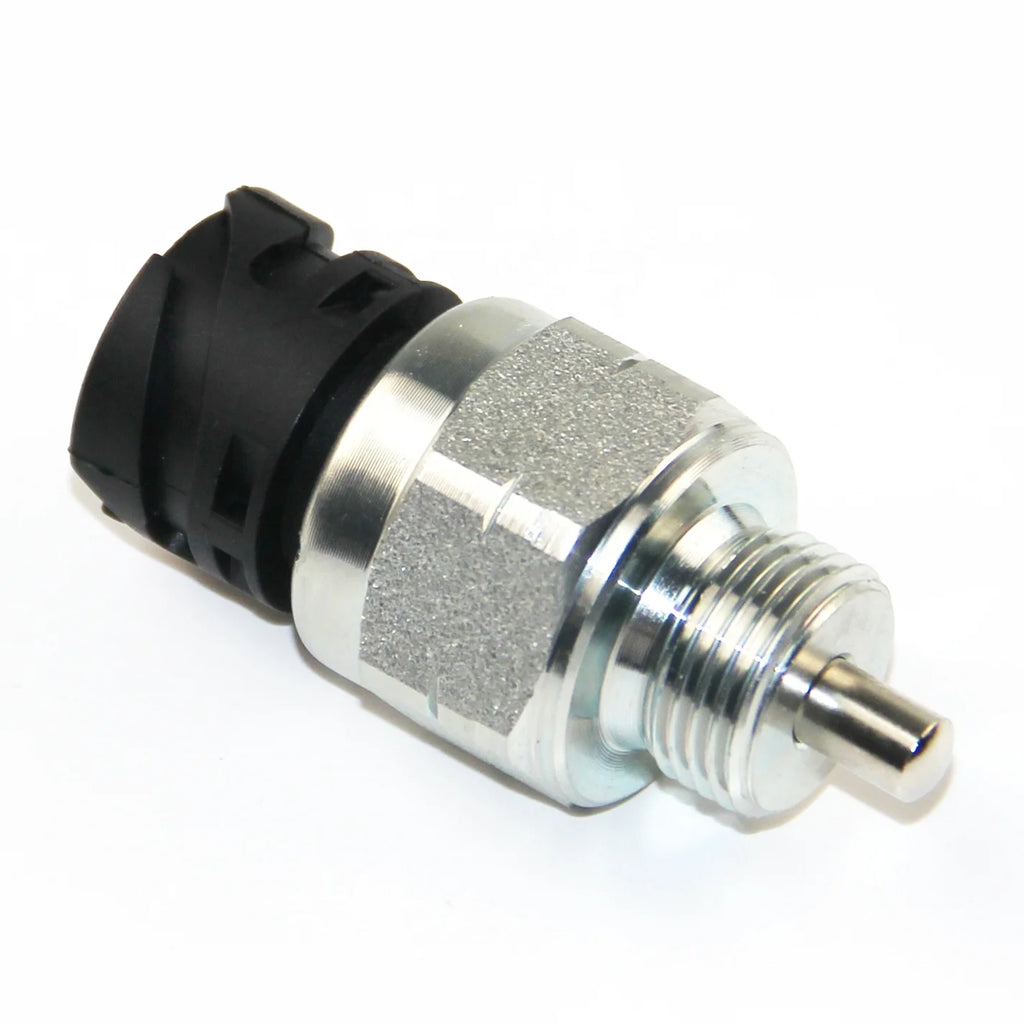

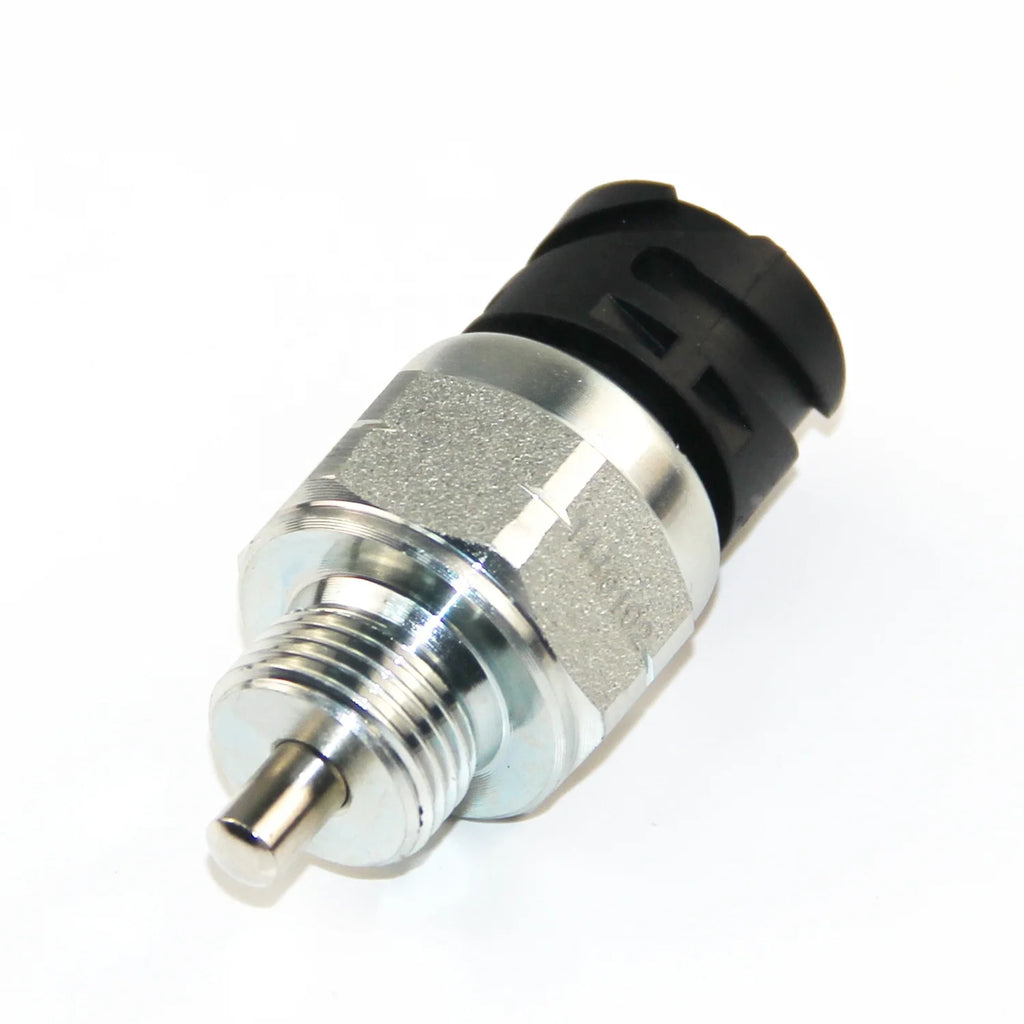

Part Name: Gearbox Switch / Transmission Range Switch
Part Numbers: 1472738 / 1394465 / 1348509
Vehicle Compatibility: Scania P-Series (P230, P270, P310, P340), G-Series (G280, G340, G380, G400) and R-Series (R420, R440, R480, R500) Trucks (2004–2016) equipped with Scania Opticruise automated manual transmissions using these gearbox switch references.
Configuration: Electronic gearbox switch manufactured to OEM dimensions with correct electrical connectors and mounting points for direct installation on the transmission selector system.
Function: Detects and communicates gear range and selector position to the transmission control unit, ensuring accurate automated shifting, stable drivability and reliable gearbox operation.
Technical Specifications
Type: Gearbox Switch / Transmission Range Switch
Transmission Type: Scania Opticruise Automated Manual Transmission
Material: Sealed electronic switch module with integrated contact circuitry
Application: Direct-fit replacement for Scania P, G & R Series Trucks (2004–2016) using switch references listed above
Cross-Reference: 1472738 / 1394465 / 1348509
Installation: Mounts on the gearbox selector assembly; professional installation recommended, including calibration after replacement
Service Interval: Replace when gear selection faults, incorrect range detection or diagnostic fault codes occur
Delivery & Availability
Stock Options: Available
Delivery Time: 3–7 days internationally
