Description
Product Overview:

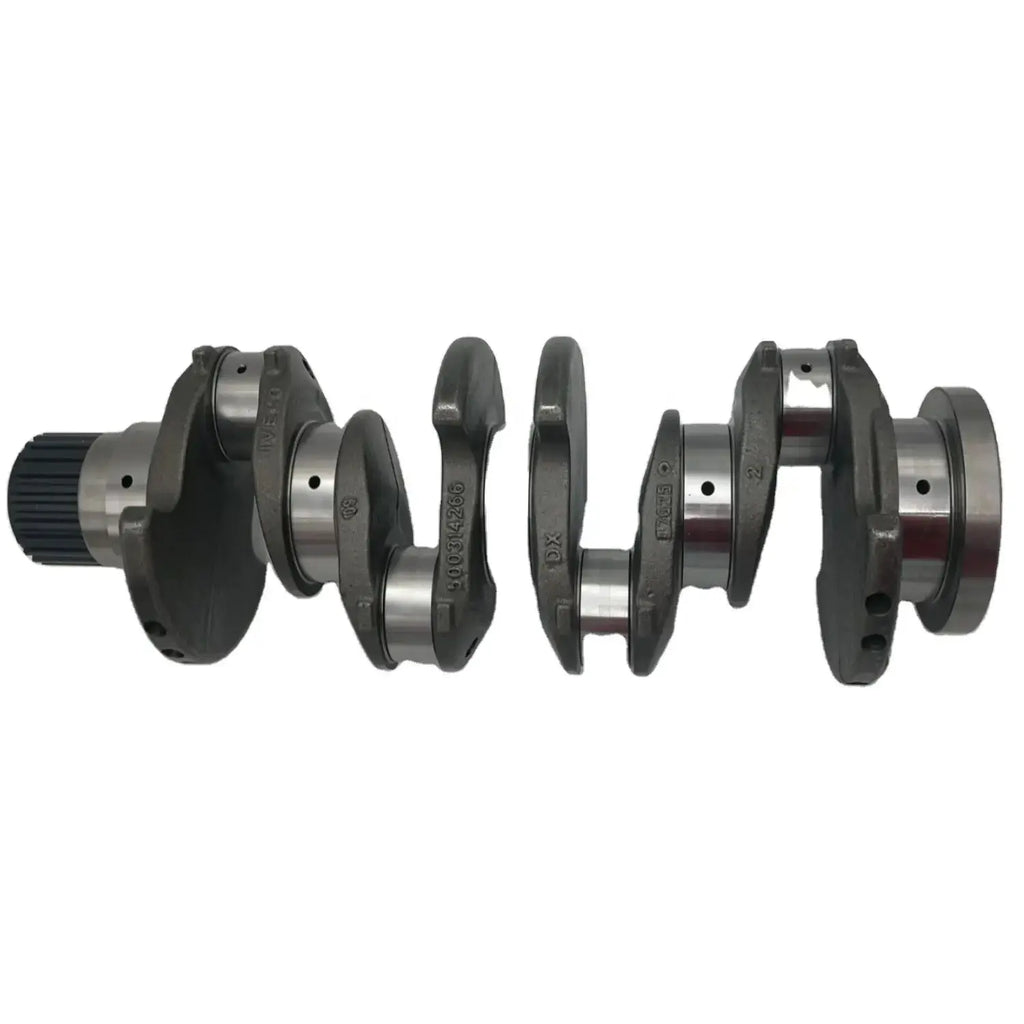

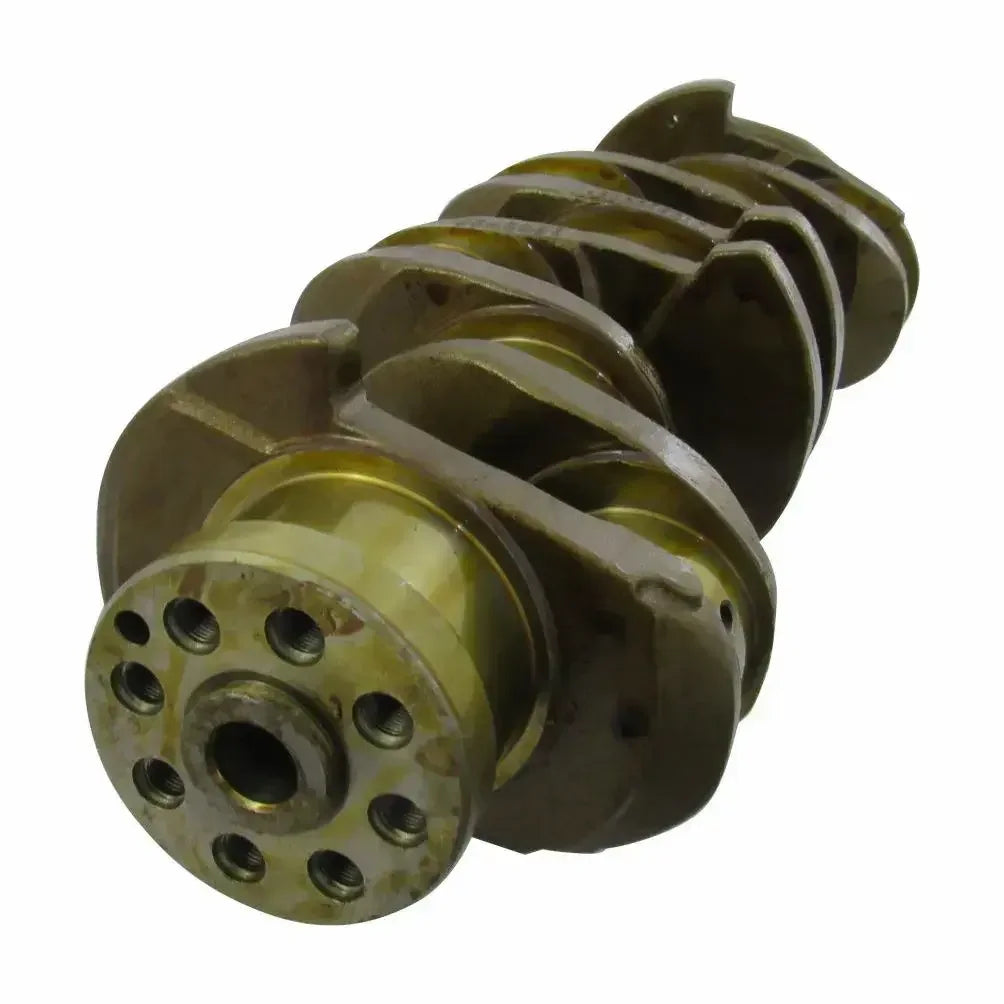

Part Name: Crankshaft
OEM / OE Part Numbers: 500314266, 504017281
Vehicle Compatibility: Iveco Daily models with 3.0L F1C diesel engine (typically 2006–2019); Suitable for both light commercial and utility configurations in RWD and some AWD layouts
Engine Compatibility: F1C 3.0L HPT / F1CE0481D / F1CE3481E Euro 4, Euro 5, and Euro 6 variants
Function: Converts linear piston movement into rotational force to drive the engine and transmission system
Design: Forged steel construction with precision-ground journals and oil galleries for consistent lubrication and high-load durability
Material: High-tensile forged steel with nitrided surface for extended wear resistance
Technical Specifications:
Engine Displacement: 3.0L (2998cc)
Number of Main Journals: 5
Number of Crank Pins: 4
Stroke Length: 104 mm
Balance Type: Fully counterweighted
Surface Finish: Nitrided and polished for optimal oil retention and bearing performance
Weight: Approx. 18–21 kg
Shipping:
Stock Options: New OEM-grade crankshaft with 12-month limited warranty
Delivery Time: 3–5 business days via international courier
