Description
Product Overview

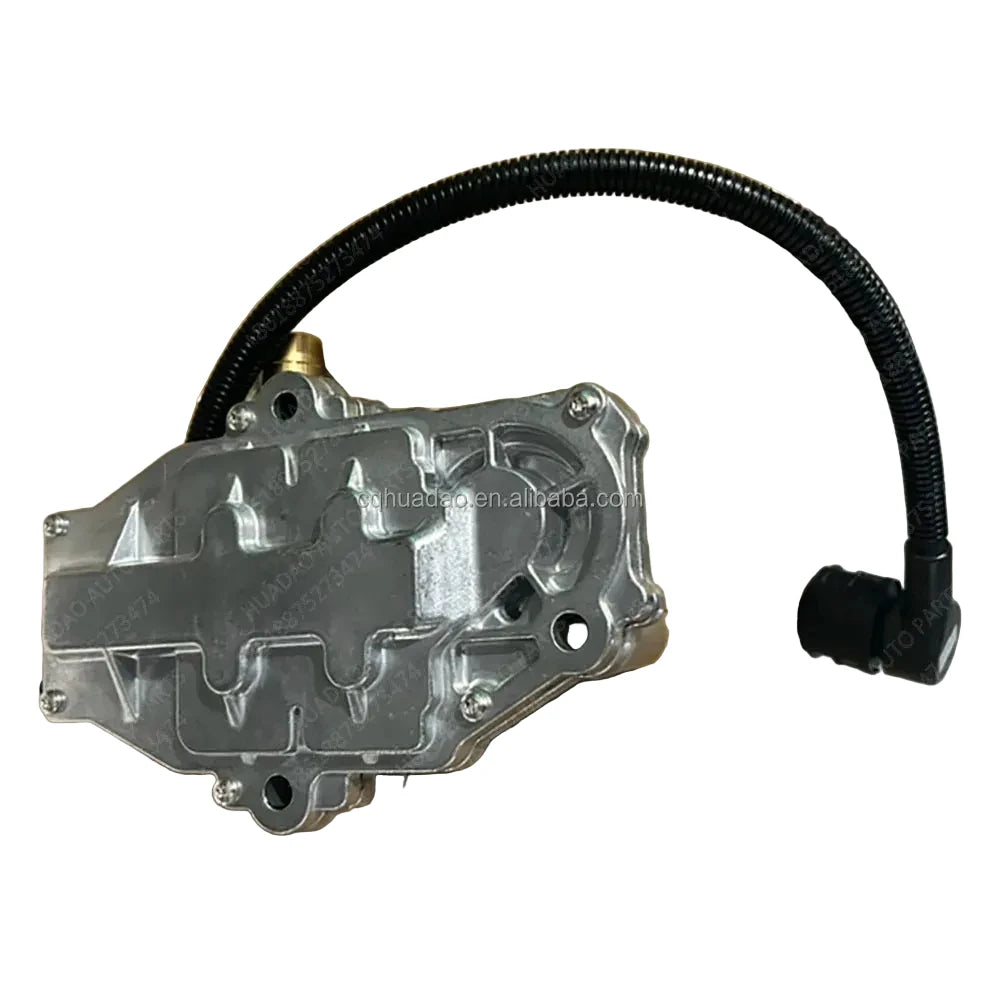

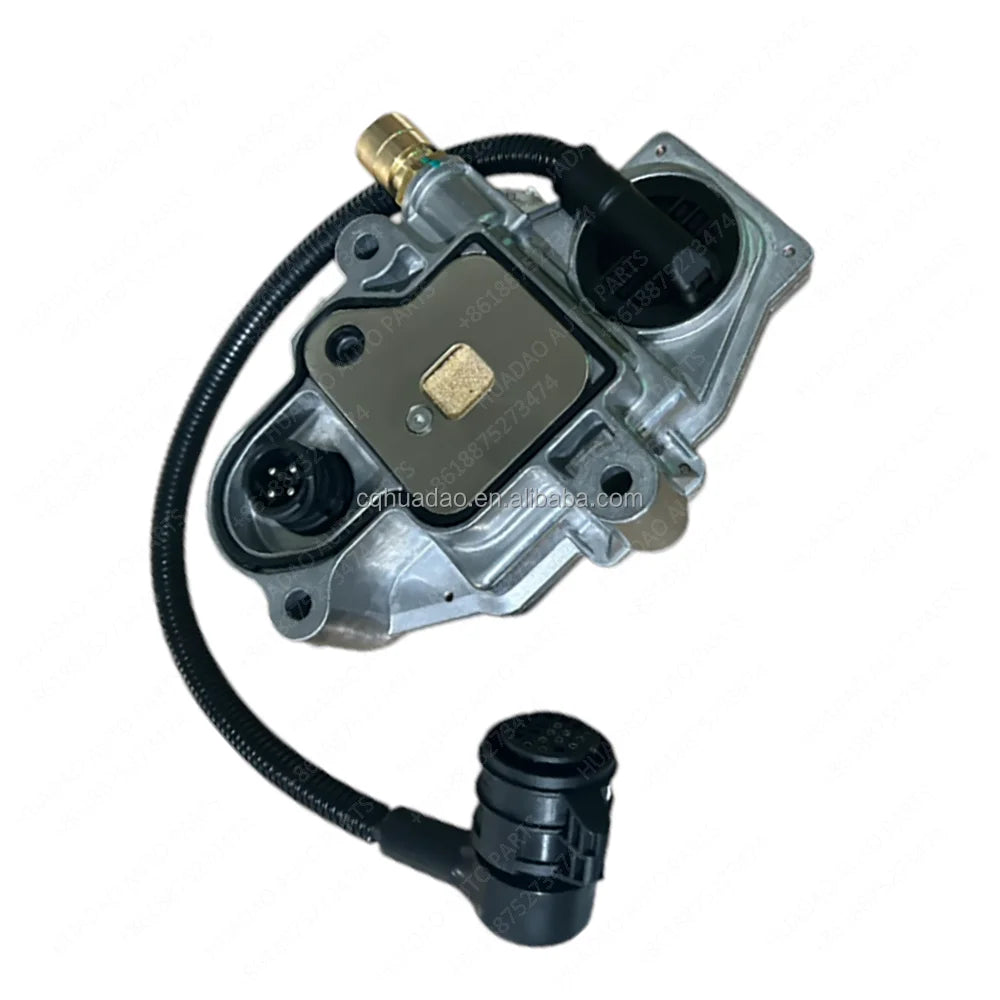

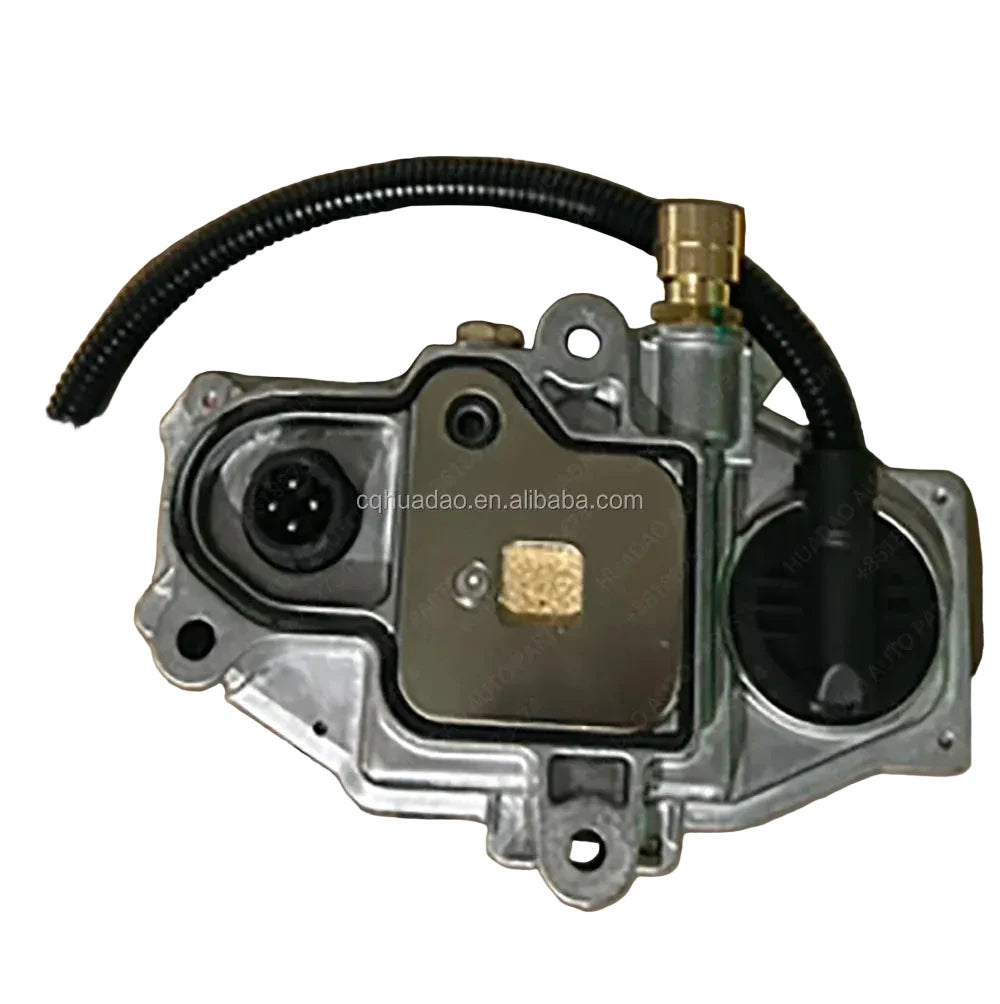

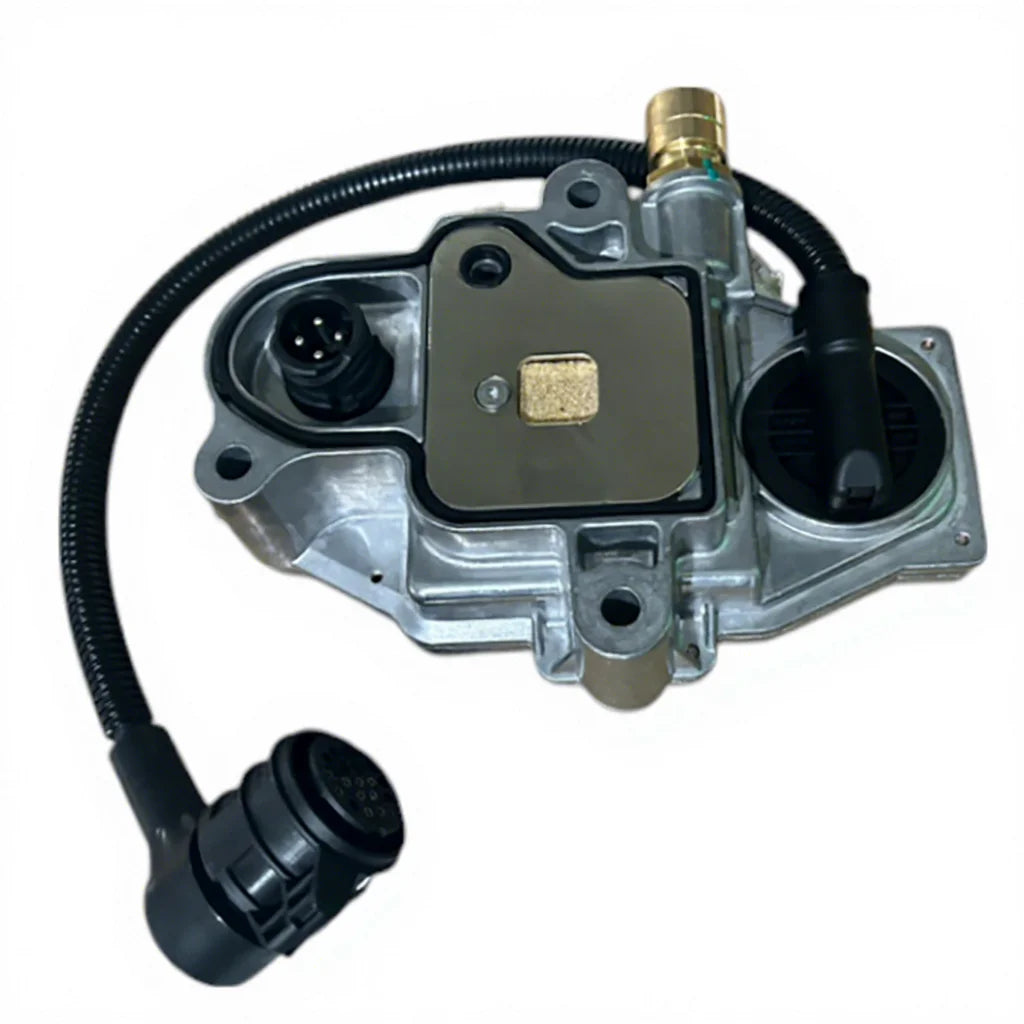

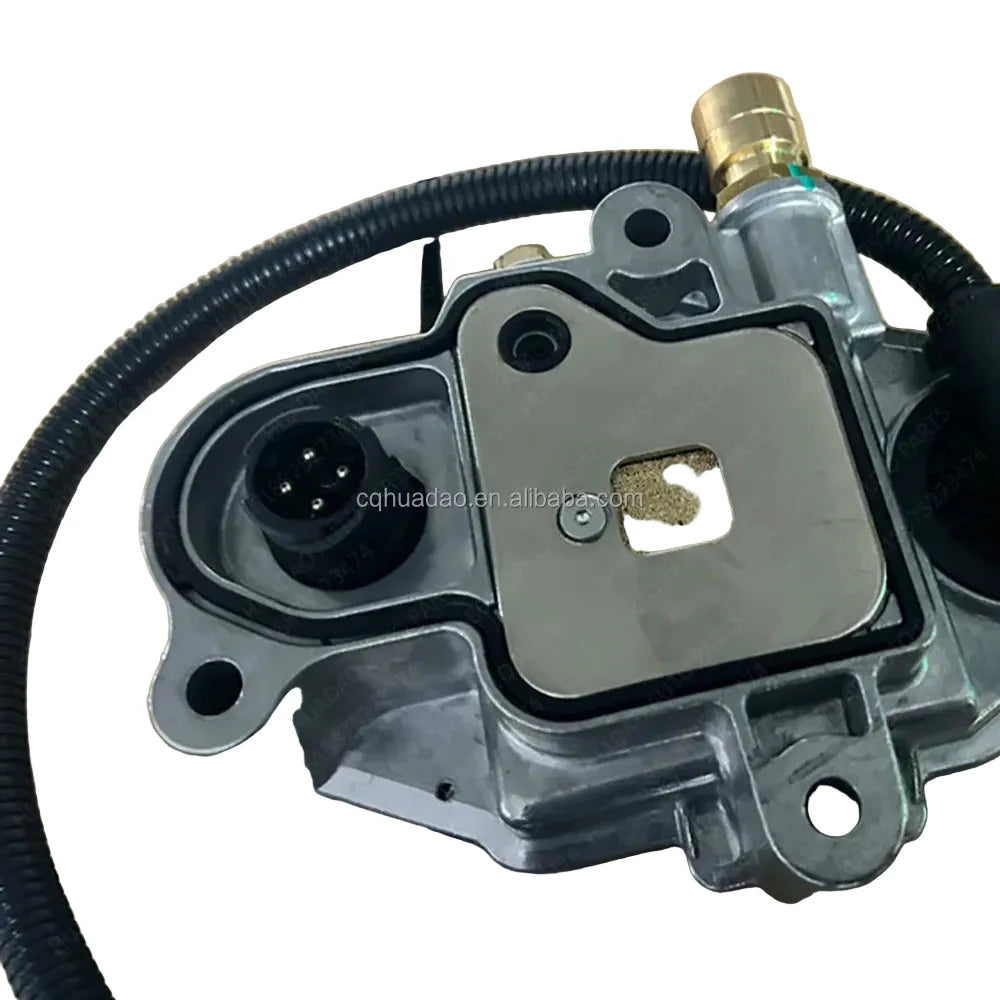

Part Name: I-Shift Clutch Control Solenoid Valve
Part Number: 22327069
Vehicle Make / Manufacturer: Volvo Trucks / Renault
Vehicle Type: Heavy-Duty Truck
Compatible Models / Series: Volvo FH Version 4, FM Version 4, FMX; Renault Range T
Compatible Transmission: Volvo I-Shift AT2612D, ATO2612D 12-Speed Automated
Component Type: Electro-Pneumatic Clutch Actuator Valve
System: Transmission & Gearbox Control
Application: Control valve block mounted directly on the transmission clutch cylinder.
Function: Regulates high-speed air pulses to actuate the clutch cylinder, delivering fast, smooth automated gear shifts without manual clutch pedal operation.
Technical Specifications
Operating Voltage:12V / 24V PWM control signal
Operating Pressure:8.5 to 11.0 bar
Housing Material:Reinforced polyamide body with precision brass internal spools
Cross Reference:Volvo 21935705 / 21462376 / 21301883
Delivery & Availability
Stock Options: High-quality aftermarket & genuine-equivalent options available where applicable
MOQ: 1
Delivery Time: 3–7 days
Condition: New
