Description
Product Overview

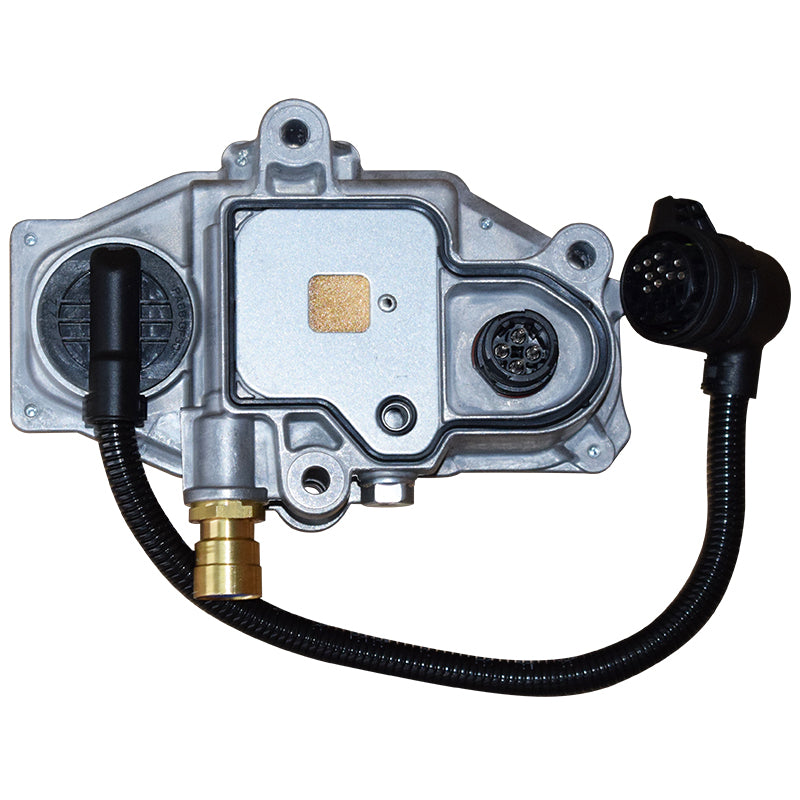

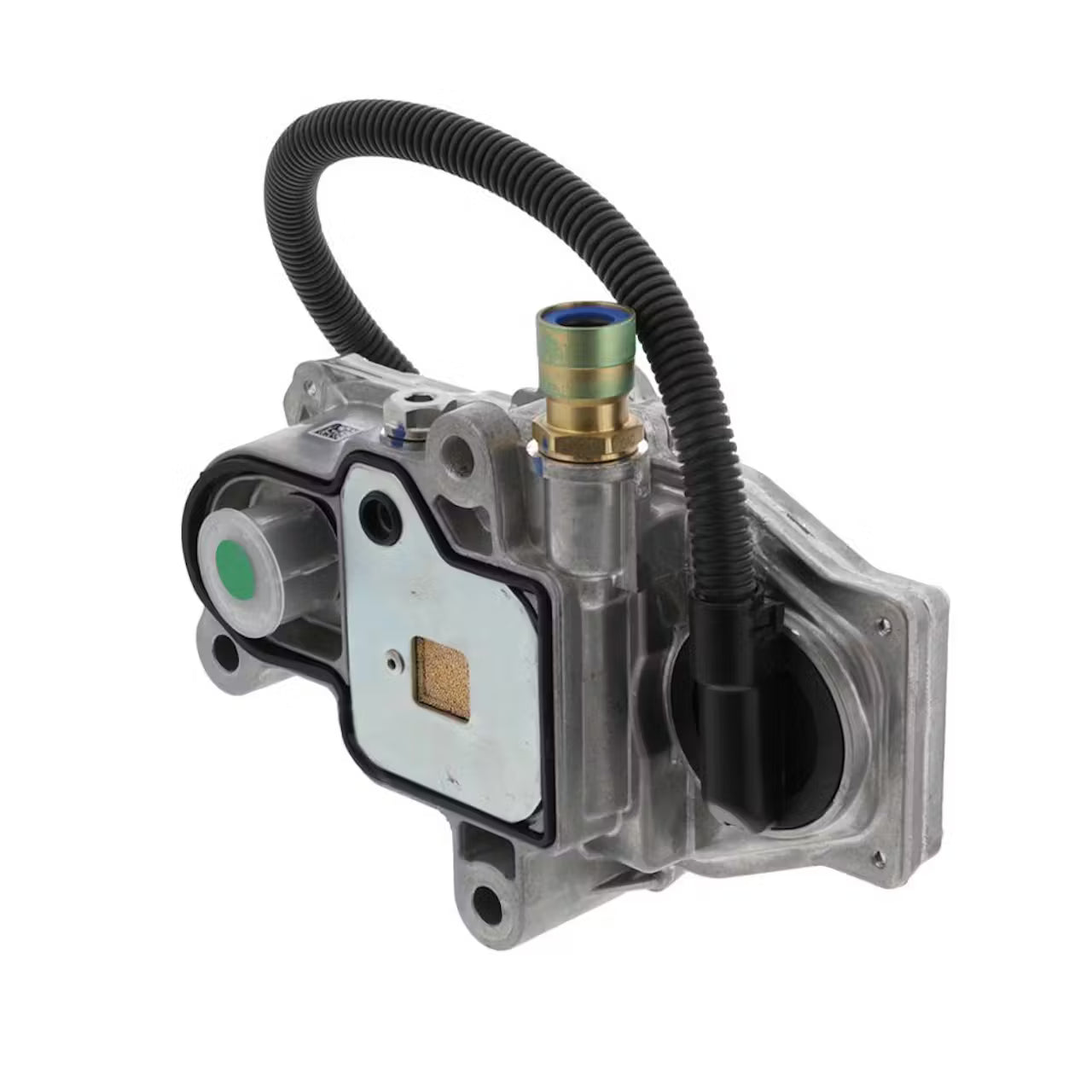

Part Name: Clutch Control Solenoid Valve (PWM Valve)
Part Number: 22327063
Vehicle Compatibility: Volvo FH13, FH16, FM9, FM11, FM13 & FMX Trucks (2013–2024) equipped with automated or electronically controlled clutch systems that specify PWM clutch valve reference 22327063. Applicable to long-haul, regional and construction-duty configurations across Volvo’s Euro-emission platforms.
Configuration: Precision pulse-width-modulated solenoid valve engineered to regulate hydraulic pressure within the clutch actuator system. Features a robust valve body, fast-response solenoid coil and OE-style electrical connector for direct integration with the clutch control module.
Function: Modulates clutch engagement pressure to deliver smooth gear changes, reduced driveline shock and consistent power transfer. Supports optimal clutch operation in automated transmissions, helping prevent slip, harsh engagement and premature wear.
Technical Specifications
Type: PWM Clutch Control Solenoid Valve
Material: High-strength valve housing with electromagnetic solenoid assembly and sealed connector
Application: Direct-fit replacement for Volvo FH13, FH16, FM9, FM11, FM13 & FMX Trucks (2013–2024) using clutch control valve reference 22327063
Cross-Reference: 22327063
Installation: Installs within the clutch actuator or control block; professional installation recommended to ensure correct sealing, electrical connection and clutch system calibration
Service Interval: Replace when shifting becomes irregular, clutch engagement is delayed or harsh, or diagnostic fault codes indicate PWM valve malfunction
Delivery & Availability
Stock Options: Available
Delivery Time: 3–7 days internationally
