Description
Product Overview

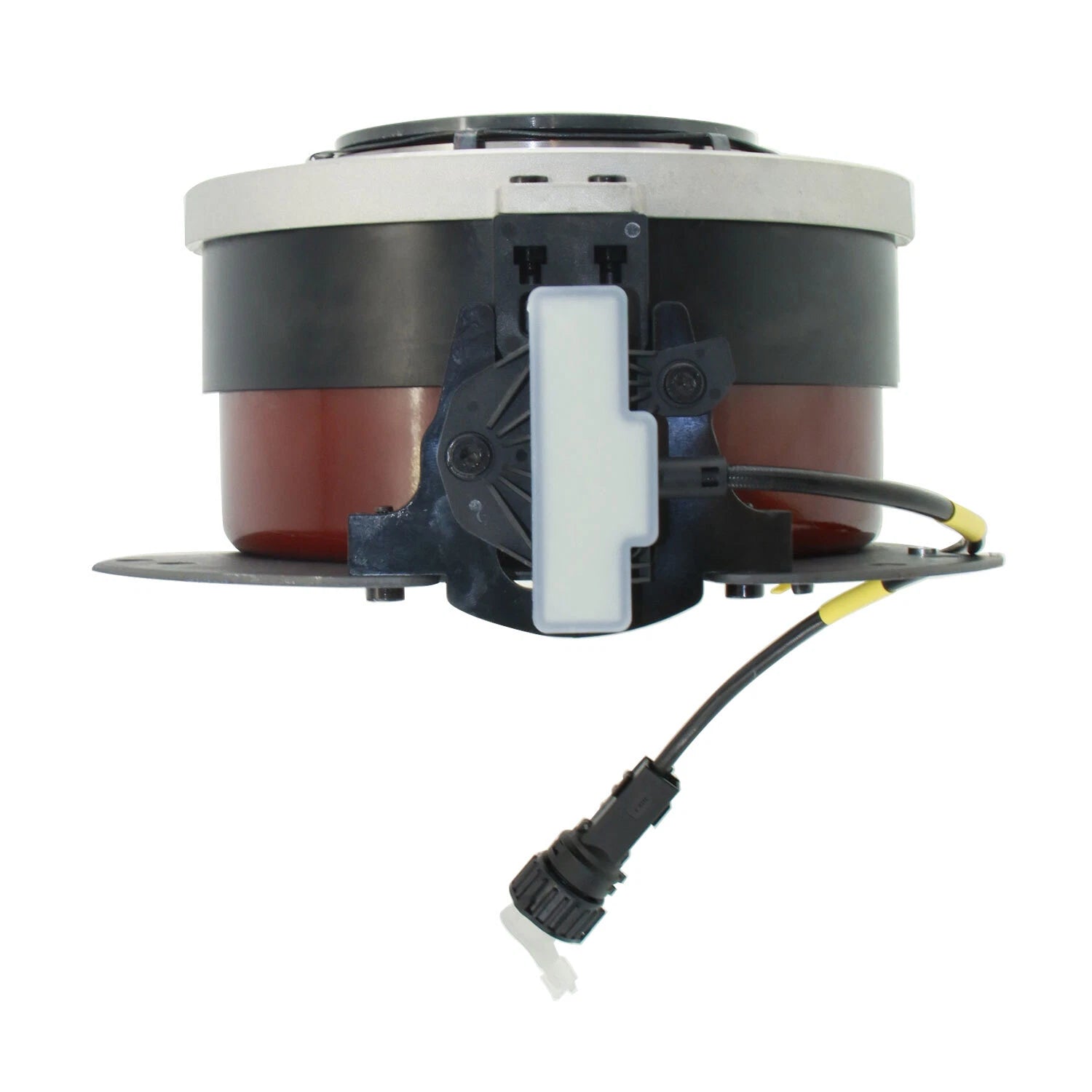

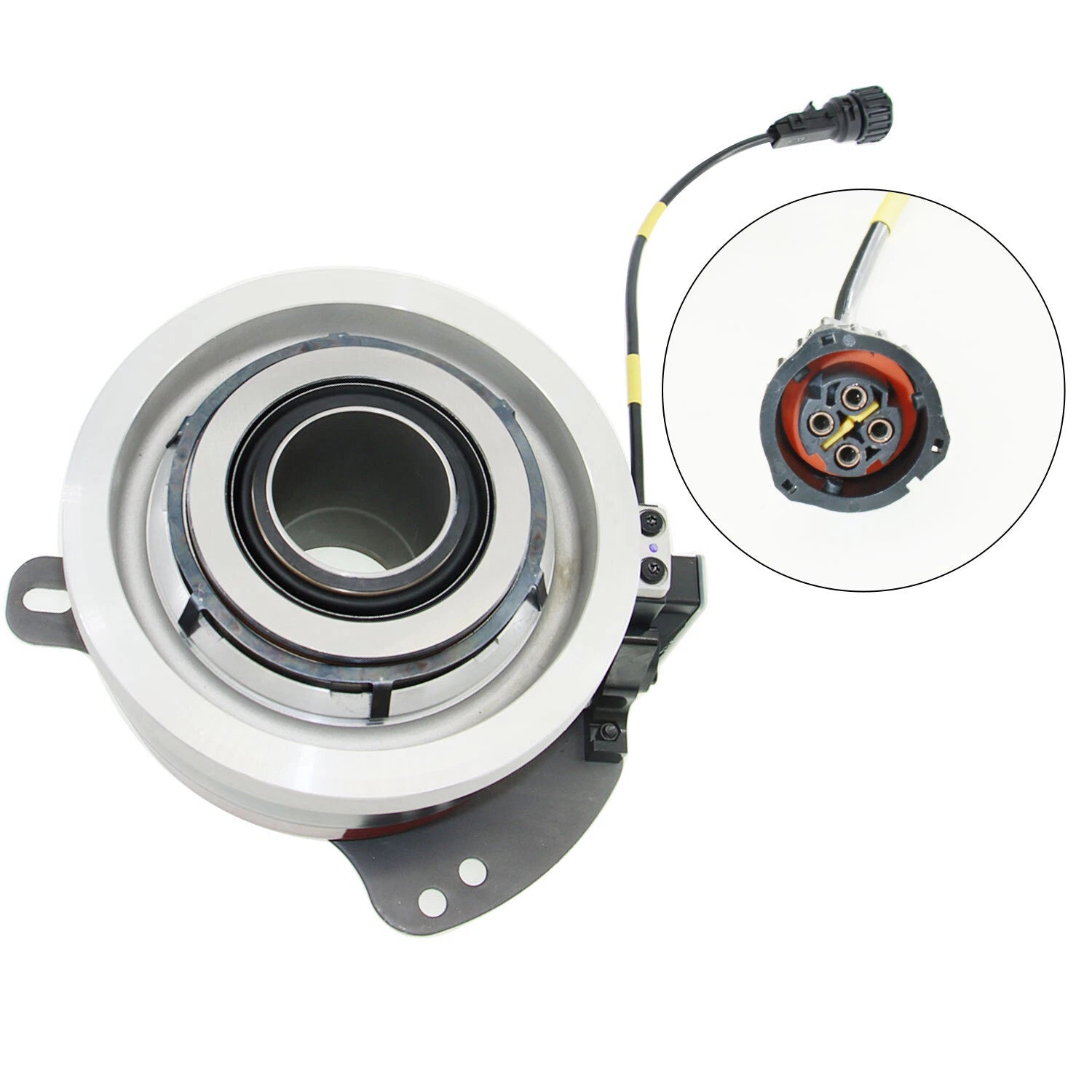

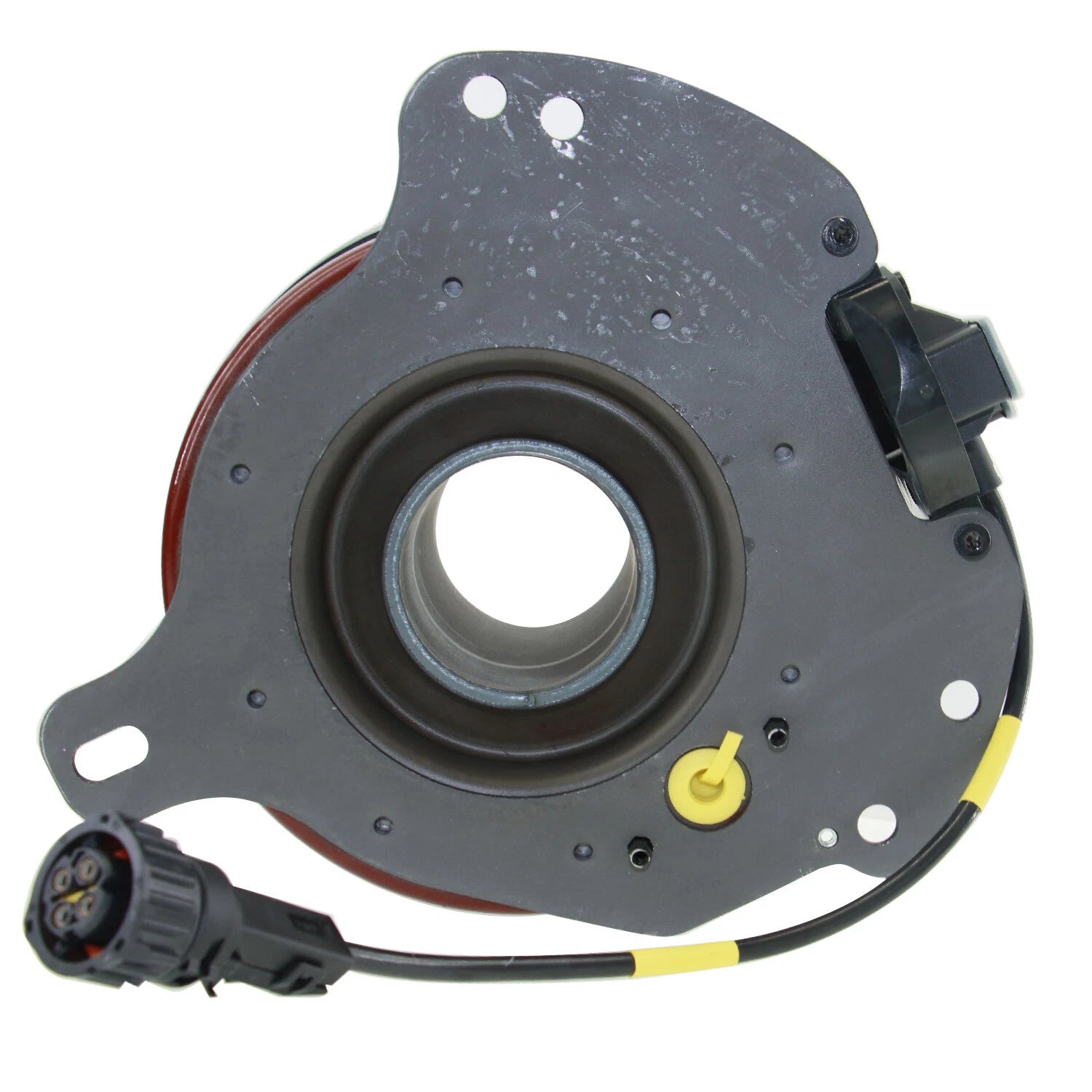

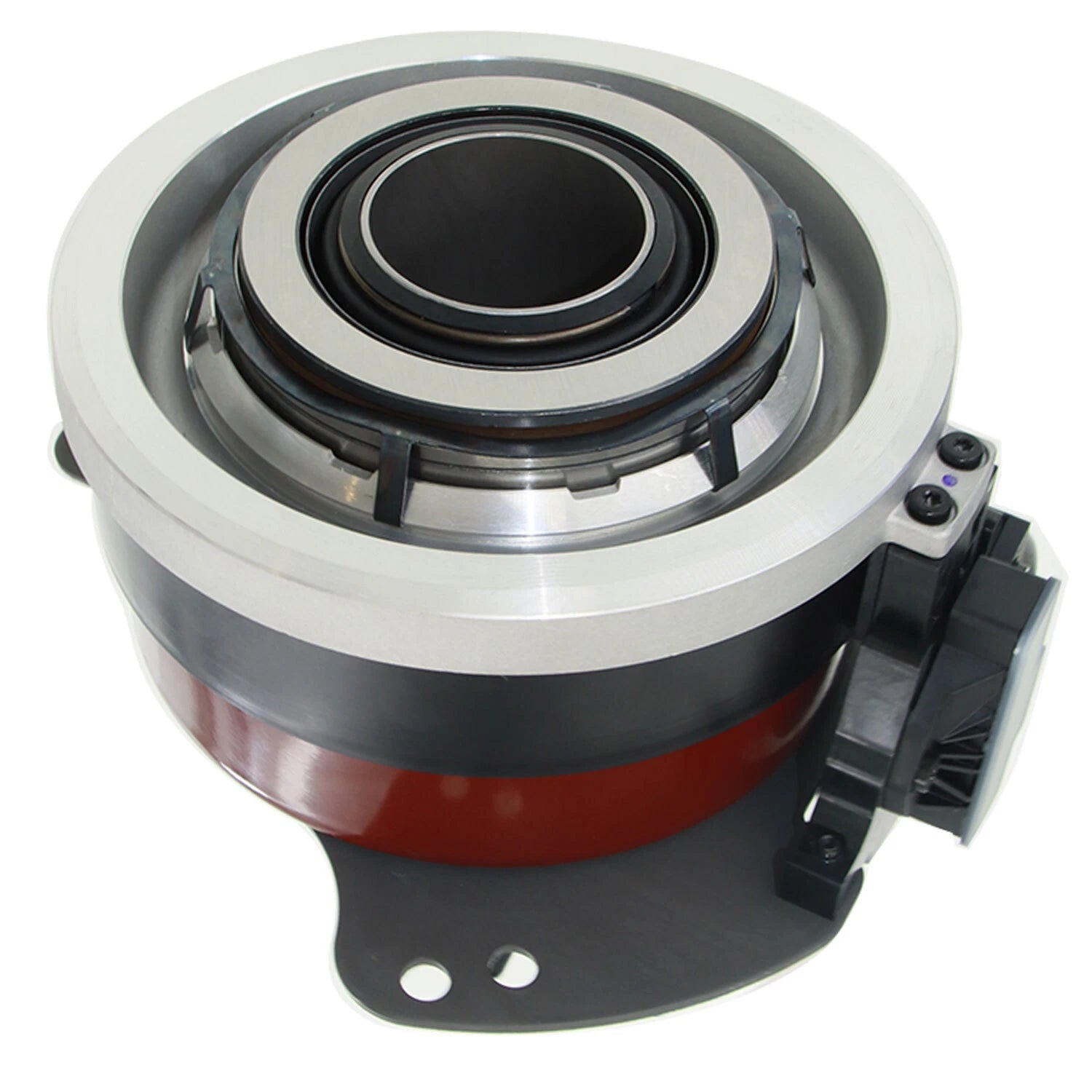

Part Name: Clutch Actuator
Part Number: 23417523
Vehicle Compatibility: Volvo FH13, FH16, FM9, FM11, FM13 & FMX Trucks (2013–2024) equipped with automated manual transmissions (I-Shift and related systems) that require clutch actuator reference 23417523. Suitable for long-haul, regional and construction-duty Volvo platforms.
Configuration: Electro-hydraulic clutch actuator designed to provide precise clutch engagement and disengagement. Built with a sealed housing, integrated position sensor, hydraulic chamber and OE-style electrical connector for direct integration with the transmission control module.
Function: Automates clutch operation by applying controlled hydraulic force to the clutch mechanism, ensuring smooth shifting, reduced driveline wear, improved fuel efficiency and consistent performance under varying load conditions.
Technical Specifications
Type: Electro-Hydraulic Clutch Actuator
Material: Reinforced aluminum/steel actuator body with integrated sensor and sealed electrical interface
Application: Direct-fit clutch actuator for Volvo FH13, FH16, FM9, FM11, FM13 & FMX Trucks (2013–2024) using actuator reference 23417523
Cross-Reference: 23417523
Installation: Installs on the transmission bell housing; professional installation recommended for correct bleed procedure, calibration and adaptation to the ECU
Service Interval: Replace when symptoms appear such as hard shifting, gear engagement delay, clutch slip warnings, actuator noise or diagnostic codes indicating actuator failure
Delivery & Availability
Stock Options: Available
Delivery Time: 3–7 days internationally
