Description
Product Overview

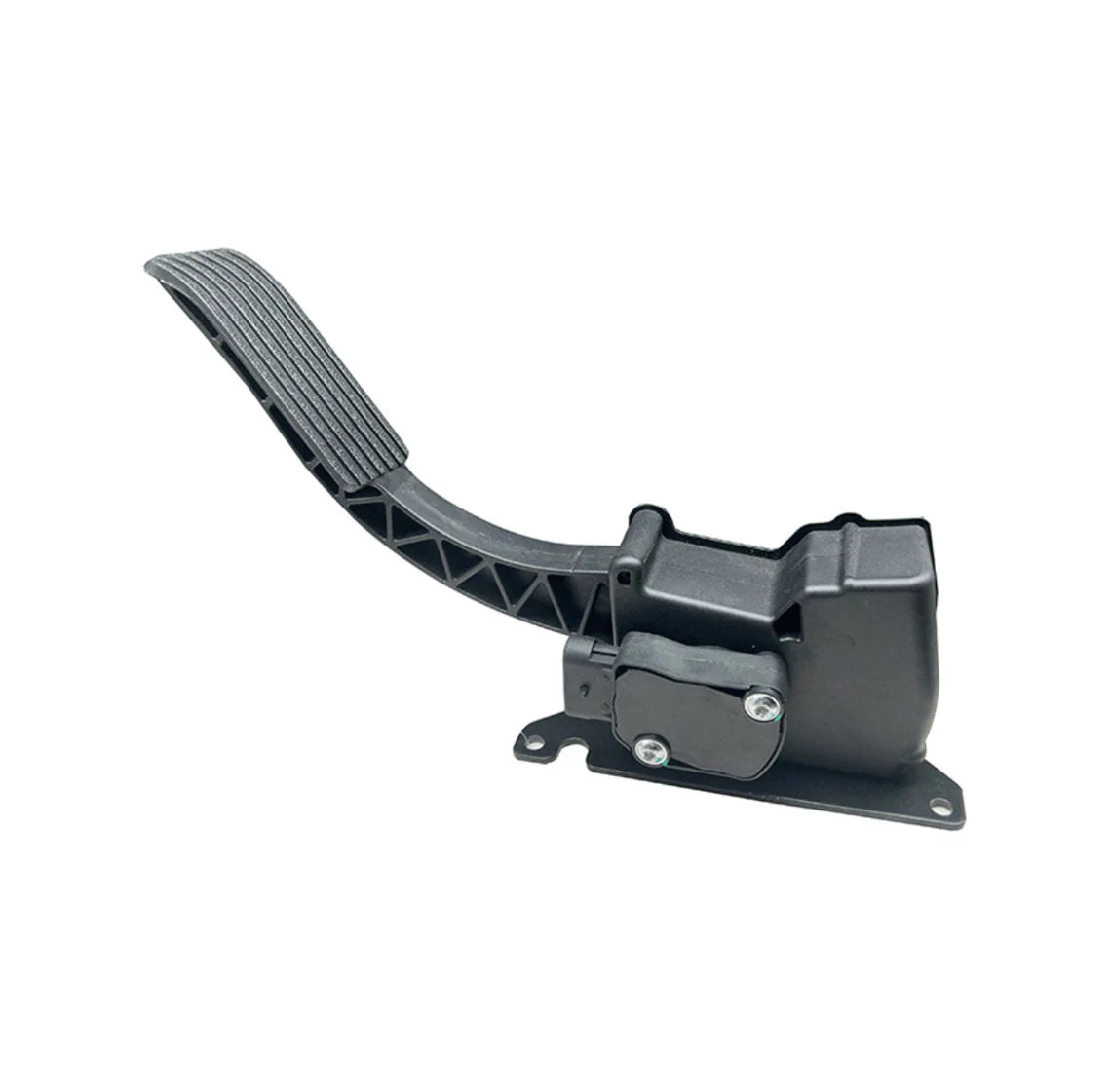

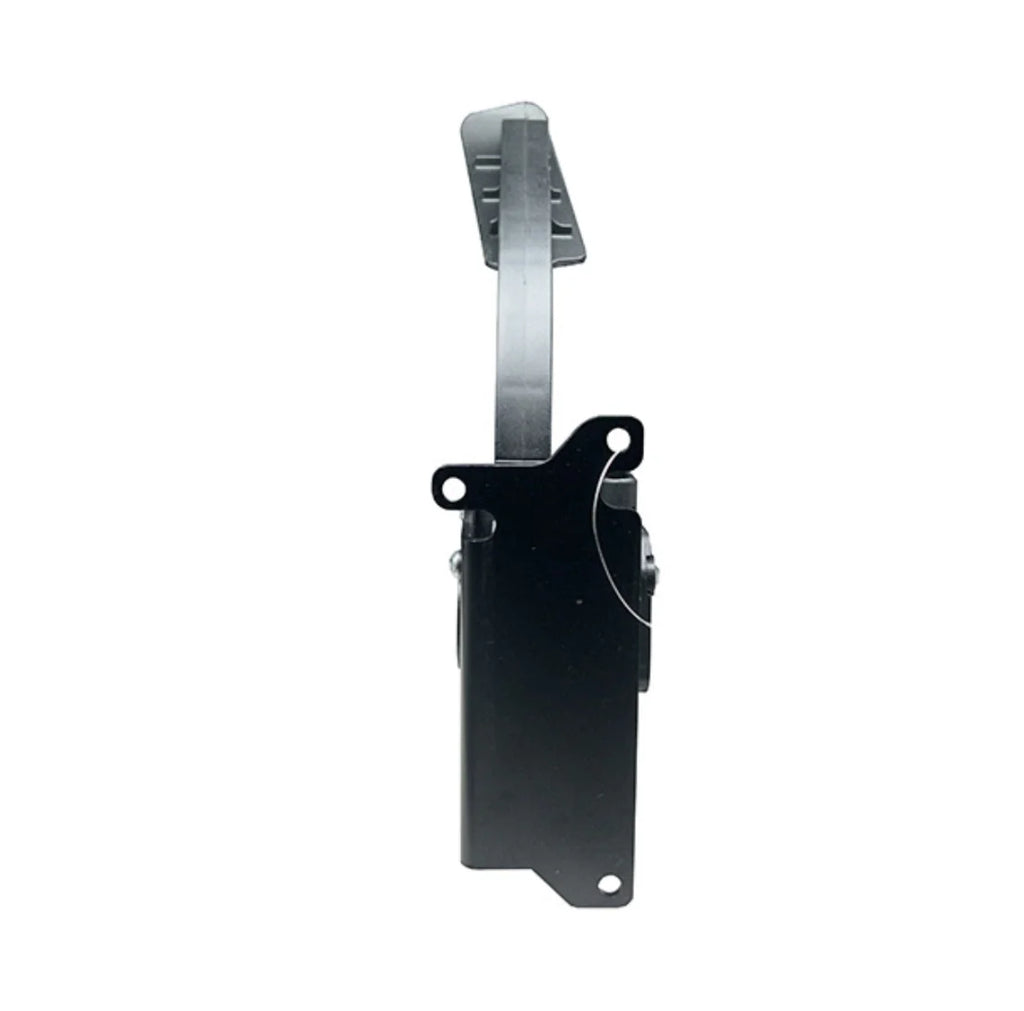

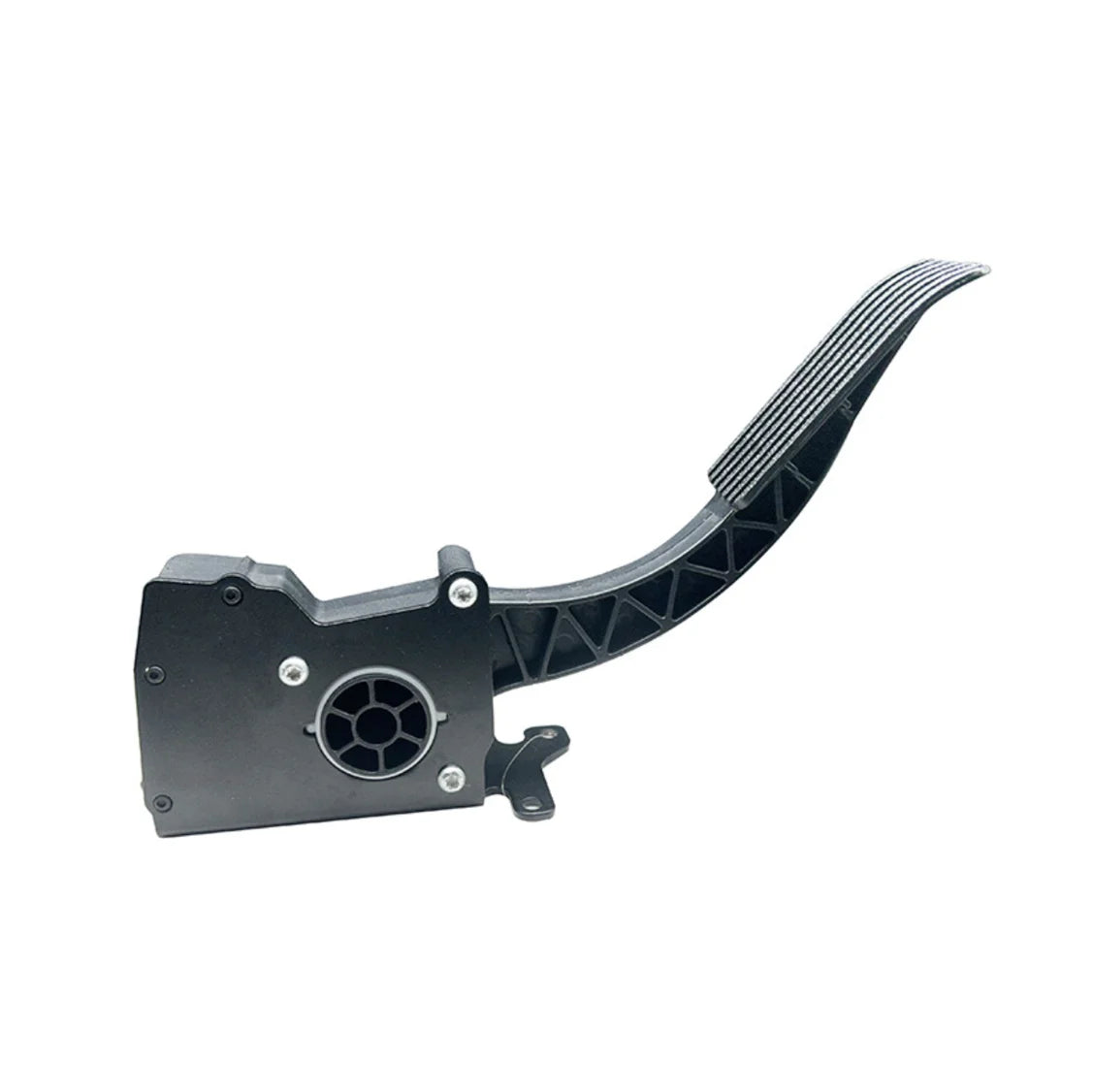

Part Name: Electronic Accelerator Throttle Pedal
Part Number: 550730100102
Vehicle Make / Manufacturer: TATA Motors
Vehicle Type: Medium & Heavy-Duty Truck
Compatible Models / Series: TATA Prima, Signa, LPT 1613, 2518, 3118
Compatible Engines: Cummins ISBe 5.9L / 6.7L, TATA 6BT
Component Type: Fly-By-Wire Electronic Pedal Sensor
System: Cab Electrical & Engine Control
Application: Cabin floor-mounted driver accelerator throttle pedal switch assembly.
Function: Transmits dual non-contact electrical voltage signals directly to the engine ECU to control fuel injection rate according to pedal angle.
Technical Specifications
Sensor Type:Contactless Hall-effect dual channel sensor
Operating Voltage:5V ECU supply voltage
Connector Type:6-pin electrical harness plug connector
Pedal Angle:18° to 22° total angular travel range
Material:Reinforced polymer pedal arm with rubber tread pad
Delivery & Availability
Stock Options: High-quality aftermarket & genuine-equivalent options available where applicable
MOQ: 1
Delivery Time: 3–7 days
Condition: New
