Product Overview:

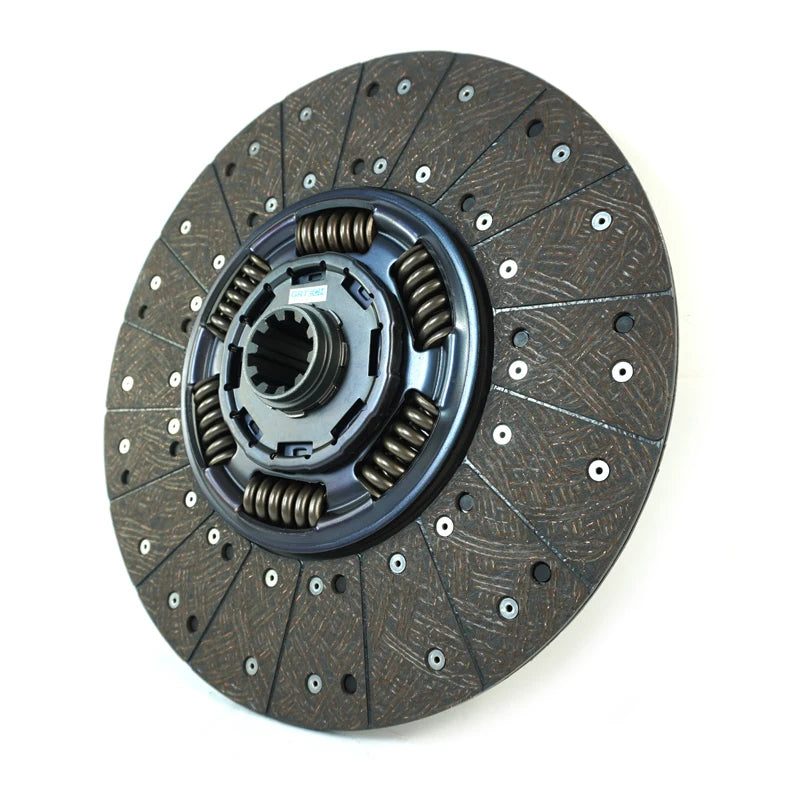

Part Name: Heavy Duty Truck Clutch Disc 430mm for MAN Transmission System
Part Numbers: 1846416
Vehicle Compatibility: Suitable for MAN heavy-duty trucks (2004–2016), including TGA, TGS, and TGX series equipped with manual transmission systems. Common in long-haul, regional, and construction truck operations.

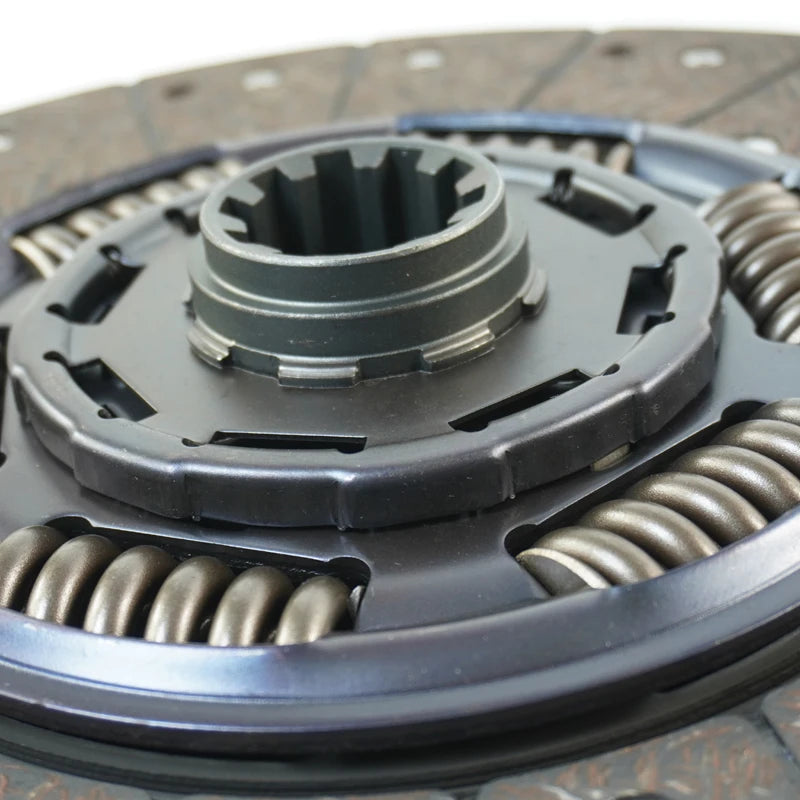

Configuration: 430mm clutch disc with torsional damper springs and reinforced friction surface
Function: Ensures efficient torque transfer between engine and transmission, absorbs drivetrain vibration, and supports smooth gear changes under heavy-duty load conditions
Technical Specifications:
Type: Heavy-duty single-plate clutch disc
Size: 430 mm diameter

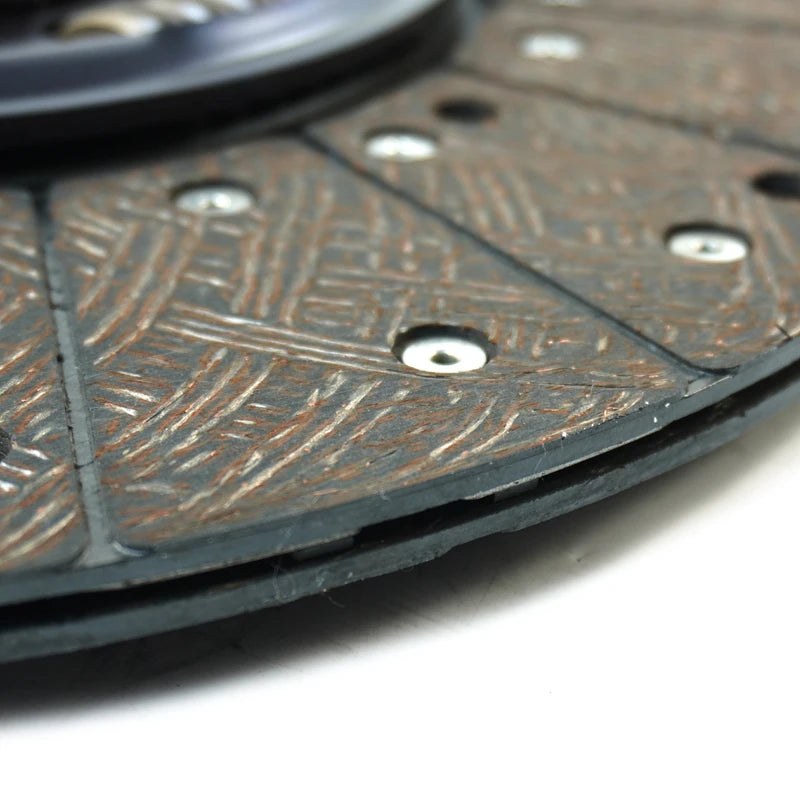

Material: High-strength steel core with organic/ceramic composite friction lining and integrated spring dampers
Application: MAN TGA, TGS, TGX trucks with manual gearbox systems using 1846416 specification
Torque Capacity: ~2500–2800 Nm (depending on engine rating)
Orientation: Installed between pressure plate and flywheel in manual transmission system
Service Interval: Replacement recommended every 200,000–250,000 km depending on driving conditions and payload
Delivery & Availability:
Stock Options: OEM-equivalent clutch discs available for MAN trucks
Delivery Time: 3–7 days internationally
