Sway Bar Links: Drop Links, Adjustable Sway Bar Links, and Replacement Parts
Sway bar links, often called drop links, are the short connecting rods joining each end of the sway bar to the suspension at the wheel. They flex with every bump and corner, wearing out long before the sway bar itself shows fatigue. A worn link produces a sharp, distinct knock that is easy to mistake for a failing sway bar.
At CBT Auto Parts, we stock front and rear sway bar links, drop links, and adjustable sway bar link upgrades, part of our Suspension & Steering Parts range alongside Sway Bars and Bushings. OEM and aftermarket are fully accepted, fitment is confirmed, and fast shipping keeps your repair on schedule.
1 product
Showing 1 - 1 of 1 product
What a Sway Bar Link Does and Why It Wears First

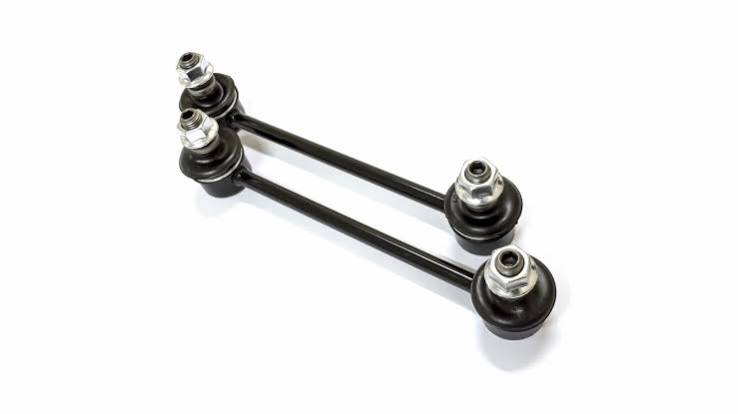

A sway bar link is the short rod, typically with a ball joint or bushing at each end, that connects the tip of the sway bar to the control arm or strut. As the suspension travels up and down over every bump, dip, and corner, the link is the component absorbing that constant articulation. The sway bar itself only twists; the link is what allows that twisting motion to transfer cleanly into the suspension's vertical movement.
Because the link is doing this work on every single wheel movement, not just during hard cornering, it is almost always the first part in this area of the suspension to wear out. A sway bar can sit untouched for the life of the vehicle while the links connected to it are replaced two or three times over.
Sway Bar Links vs the Sway Bar Itself: Confirming You're in the Right Place
A search for sway bar and sway bar links usually means the buyer already suspects the link rather than the bar, but wants to rule the bar out before ordering. This page covers the link specifically. If body roll through corners has increased noticeably, the sway bar itself is the more likely cause, and our Sway Bars page covers that diagnosis in detail.
The symptom pattern that points to the links rather than the bar is fairly consistent. A search for sway bar and links together usually reflects this exact moment of uncertainty, and the distinction below resolves it quickly:
- A sharp, localised knock over small bumps or at low speed, particularly when turning into a driveway.
- Noise that appears or worsens specifically under light steering input, not just hard cornering.
- No noticeable increase in body lean during normal cornering.
- If that matches what you are hearing, you are on the right page.
Signs Your Sway Bar Links Need Replacing
Sway bar link wear has a distinct signature once you know what to listen for. The following are the clearest indicators that replacement is due:
- A metallic knock or clunk over speed bumps, potholes, or uneven driveways.
- Noise is concentrated at low speed during light steering, rather than during hard cornering.
- Visible play when the link is grasped by hand and rocked with the wheel off the ground.
- A torn or perished rubber boot at either end of the link, allowing dirt into the joint.
- The knock changes pitch or intensity depending on which wheel hits the bump first.
If two or more of these are present, both links on the same axle should be inspected together, as they wear at a similar rate under normal driving.
Drop Link, Standard and Adjustable Sway Bar Link: Knowing Your Options
Drop Link: Same Part, Different Name
Drop link and sway bar link describe the identical component. The drop link name comes from the part's position, dropping down from the sway bar to meet the control arm or strut, and is used interchangeably with sway bar link across listings, manuals, and forums. There is no functional difference between the two names.
Standard Sway Bar Link
A standard sway bar link is a fixed-length replacement matching factory geometry exactly. This is the correct choice for any vehicle running at factory ride height, restoring original handling characteristics without any further adjustment needed.
Adjustable Sway Bar Link
An adjustable sway bar link allows the effective length to be tuned, which becomes necessary once a vehicle's ride height changes through a lift or lowering kit. A fixed-length link installed on a modified vehicle sits at an angle it was never designed for, accelerating wear and altering roll control. An adjustable sway bar link corrects that geometry back to a proper working angle.
Front Sway Bar Links and Rear Fitment
Most vehicles run sway bar links at the front, and many also run them at the rear, with each position wearing at a different rate depending on suspension load and steering geometry.
- Front sway bar links typically wear faster on vehicles with significant front-end weight or frequent hard cornering.
- Checking the sway bar link front specification against the rear before ordering prevents a mismatched fitment, as the two are rarely interchangeable.
- Lifted or lowered vehicles place additional angular stress specifically on front links, making adjustable options more relevant at this position.
- Rear sway bar links see less load on most platforms but should still be replaced as a pair, not individually.
Every listing on our site specifies front or rear position clearly, removing the guesswork from matching the correct link to your vehicle.
Sway Bar Link Bushings: The Wear Point Within the Link
Many sway bar links use a small rubber bushing at one or both ends rather than a sealed ball joint, and sway bar link bushings are frequently the actual point of failure inside an otherwise sound link. A perished bushing allows the same knocking movement as a fully worn link, often at a fraction of the wear cycle.
Where the link uses a separate, replaceable bushing rather than a sealed joint, replacing just the sway bar link bushings can resolve the noise without replacing the full link. Polyurethane bushing upgrades, covered in more detail on our Bushings page, are a common choice here given how frequently this specific joint flexes under normal driving.
Cost of Replacing Sway Bar Links: DIY vs Workshop
The cost of replacing sway bar links is generally modest compared to most other suspension components, which is part of why delaying the repair rarely makes financial sense. A few points worth knowing before deciding how to approach the job:
- Sway bar link replacement cost is typically low per part, with the bulk of any workshop bill coming from labour rather than the component itself.
- Changing sway bar links is one of the more accessible DIY suspension jobs, usually requiring only basic hand tools and a torque wrench.
- Access can be tight on some platforms, particularly where the link mounts behind a sway bar bracket, which adds time but not difficulty.
- Replacing both links on an axle at once, even if only one shows symptoms, avoids a second labour charge shortly after.
OEM vs Aftermarket Sway Bar Links
OEM sway bar links replicate the original joint type, length, and bushing compound precisely, the right call for vehicles still at factory ride height, where unmodified handling is the priority.
Aftermarket sway bar links, including adjustable options, are fully accepted and commonly used by workshops fitting lift kits, lowering kits, or performance suspension upgrades. For a modified vehicle, a quality aftermarket adjustable sway bar link is often the only option that correctly restores geometry a fixed-length OEM link cannot accommodate.
